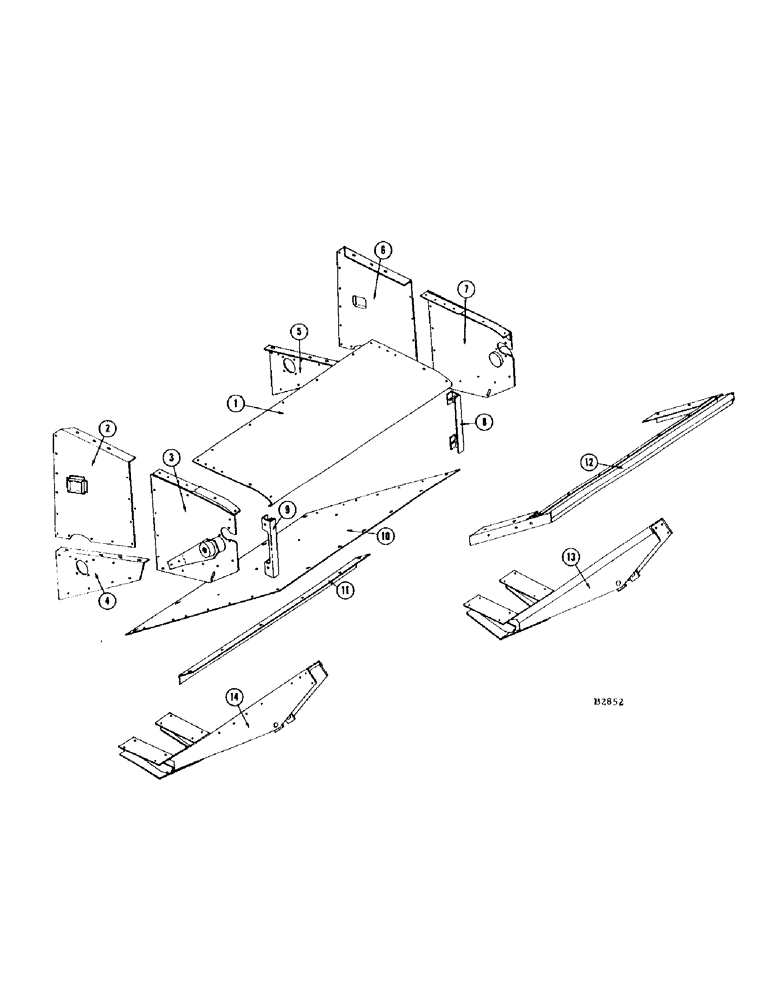

Запчасти Case IH 306 (12) - FEEDER SPOUT (58) - ATTACHMENTS/HEADERS

1

F54832

COVER - feeder house

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Nut (25-104) L.W. (92-4) Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Nut (25-106) fl. wshr. (195-25) and L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

111-356

CARRIAGE BOLT

BOLT - 3/8" x 3/4" rhd, sq. nk., nut (25-106) L.W. (92-6)

4шт.

2

F92871

SIDE - L.H. feeder

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

3

F92856

PIVOT - L.H.

1шт.

4

F54851

SUPPORT - floor, L.H.

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), Flatwasher (195-21) and L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

5

F54852

SUPPORT - floor, R.H.

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), Flatwasher (195-21) and L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

6

F92872

SIDE - R.H., feeder

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

77-512

SCREW

- 5/16" x 3/4" slotted truss hd., nut (25-105) and L.W. (92-5)

1шт.

7

F92858

PIVOT - R.H.

1шт.

8

F92866

FILLER - channel, R.H.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8", and L.W. (92-6)

2шт.

9

F92865

FILLER - channel, L.H.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8". and L.W. (92-6)

2шт.

10

F54854

FLOOR - feeder

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

11шт.

11

F54853

SUPPORT - floor

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

195-21

WASHER,5/16"

FLATWASHER - 5/16"

2шт.

12

F92860

CROSS ANGLE - hinge rod

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13

F92868

SUPPORT - main , R.H.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (25-108) L.W. (92-8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

7шт.

14

F92867

SUPPORT - main L.H.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Nut (25-108) L.W. (92-8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

7шт.
