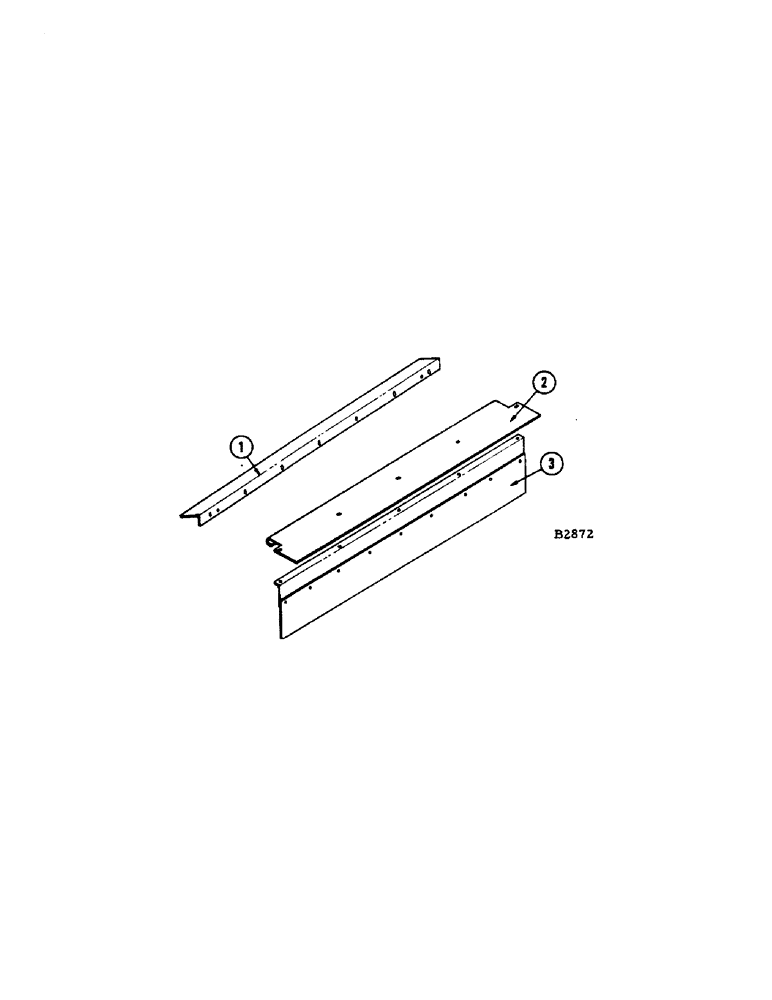

Запчасти Case IH 306 (10) - MOUNTING PARTS, 1665 COMBINE (58) - ATTACHMENTS/HEADERS

1

F54271

PLATE - feed, stationary

1шт.

2

F54901

PLATE - movable feed

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk., nut (129-101) L.W. (192-19)

5шт.

3

F92362

SEAL - hinged feed plate

1шт.

151-138

RIVET - 3/16" x 3/8" semi-tub., fl. wshr. (195-13)

9шт.
