(10[3]) - MOUNTING PARTS, 1665 COMBINE, WHEEL WEIGHTS

Запчасти Case IH 306 (10[3]) - MOUNTING PARTS, 1665 COMBINE, WHEEL WEIGHTS (58) - ATTACHMENTS/HEADERS

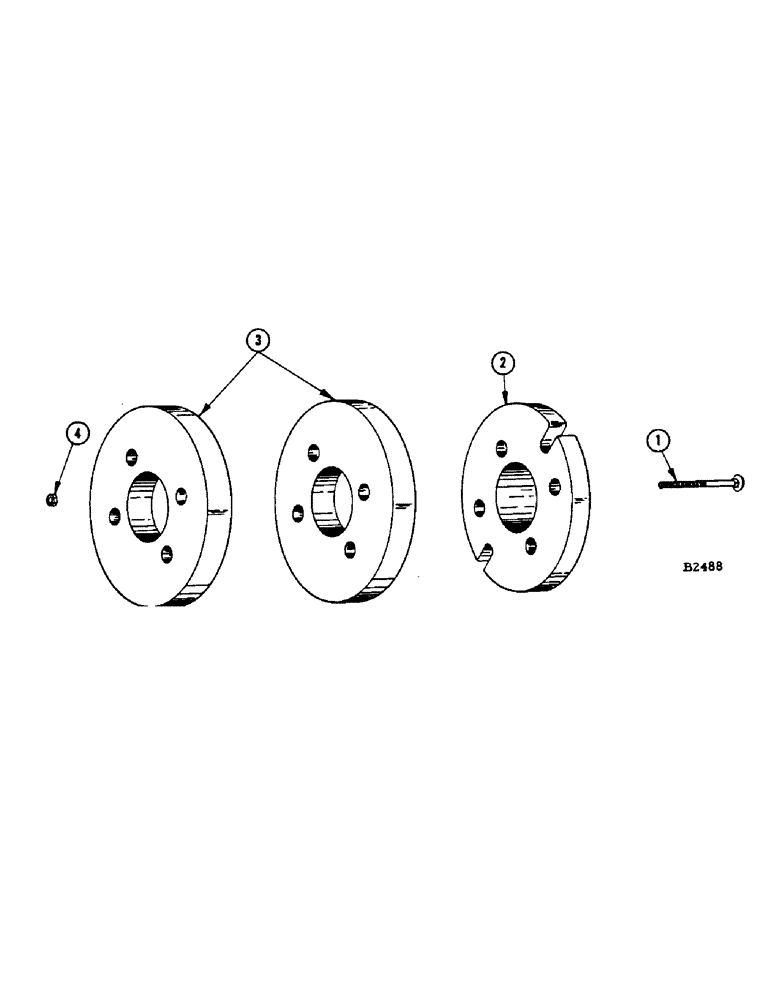

Схема запчастей Case IH 306 - (10[3]) - MOUNTING PARTS, 1665 COMBINE, WHEEL WEIGHTS (58) - ATTACHMENTS/HEADERS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F54089

BOLT - wheel

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

Fl. wshr. (95-8) 1/2"-13, G5

24шт.

2

F2180

WEIGHT - wheel, (150 lbs.)

2шт.

3

F2181

WEIGHT - wheel, (150 lbs.)

4шт.

4

F54090

NUT - push-on

8шт.

92-8

LOCK WASHER,1/2"

8шт.
