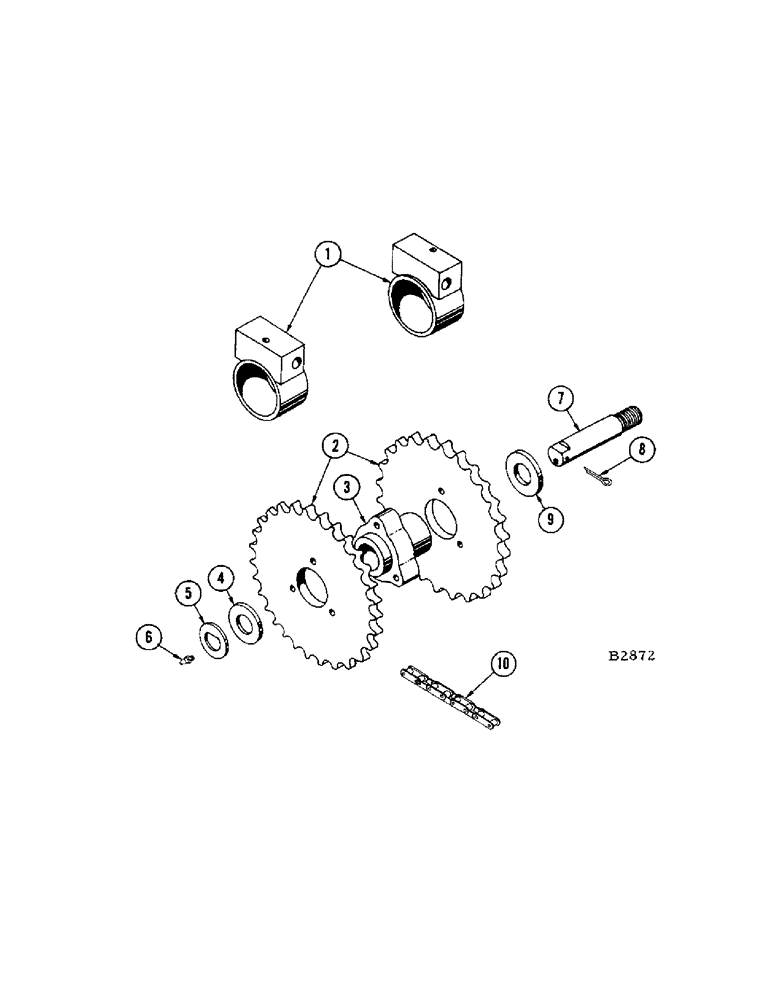

Запчасти Case IH 306 (08) - MOUNTING PARTS, 1665 COMBINE, HEADER DRIVE SPROCKETS AND PIVIOT ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

F88589

GUIDE

PIN GUIDE AND PIVOT

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING

2шт.

2

F54068

SPROCKET

2шт.

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 3 1/4", G5

3шт.

3

F92136

HUB - header drive

1шт.

F51453

BEARING

2шт.

4

F53928

WASHER - retaining

1шт.

5

F53834

WASHER - retaining

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

7

F53927

SHAFT - main drive pivot pin

1шт.

8

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

9

F53833

WASHER - retaining

1шт.

10

F54899

CHAIN - main drive (NSS-see chain page)

1шт.
