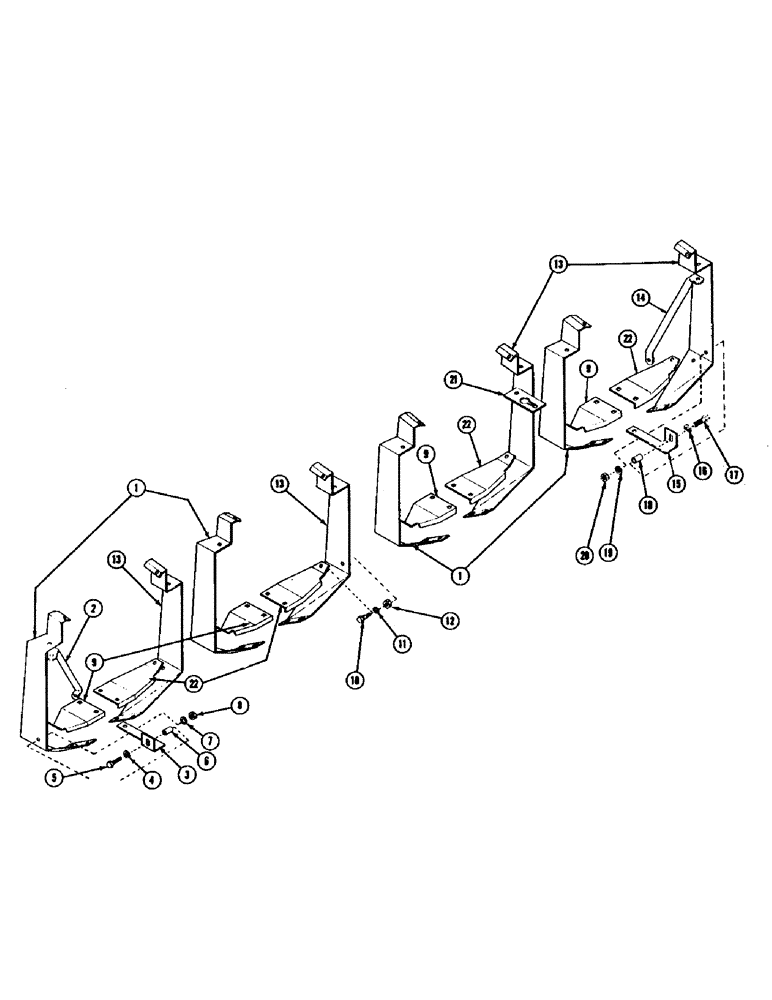

Запчасти Case IH 304 (88) - BRACKETS & BRACES, 304 AND 404 (58) - ATTACHMENTS/HEADERS

1

F53670

BRACKET - outer chain pivot, R.H. (304)

2шт.

1

F53670

BRACKET - outer chain pivot, R.H. (404)

4шт.

18-516

BOLT - 5/16" x 1" N. C. #3 plow (304)

2шт.

18-516

BOLT - 5/16" x 1" N. C. #3 plow (404)

4шт.

2

F92546

BRACE - point support, R.H.

3шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N. F. hex., nut (25-116) L.W. (92-6)

3шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5) Hex, 5/16"-24 x 1 1/4", G5

3шт.

3

F53915

CLIP - right shield

1шт.

4

195-525

WASHER,3/8", SAE

- 3/8" std.

1шт.

5

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N. F. hex.

1шт.

6

F54334

SPACER

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-123

NUT,3/8"-24, G5

1шт.

9

F54417

BRACE - chain and pivot bracket, R.H. outer (304)

3шт.

9

F54417

BRACE - chain and pivot bracket, R.H. outer (404)

4шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) (304) Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) (404) Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

10

O3961CH

BOLT

PIN - pivot (304)

5шт.

10

O3961CH

BOLT

PIN - pivot (404)

8шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (304) 3/8"

5шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (404) 3/8"

8шт.

12

129-123

NUT,3/8"-24, G5

(304) 3/8"-24, G5

5шт.

12

129-123

NUT,3/8"-24, G5

(404) 3/8"-24, G5

8шт.

13

F53723

BRACKET - chain and pivot, L.H. outer (304)

2шт.

13

F53723

BRACKET - chain and pivot, L.H. outer (404)

4шт.

18-516

BOLT - 5/16" x 1" N. C. #3 plow, nut (25-105) L.W. (92-5) (304)

4шт.

18-516

BOLT - 5/16" x 1" N. C. #3 plow, nut (25-105) L.W. (92-5)

8шт.

14

F92545

BRACE - point support, L.H.

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N. F. hex., nut (25-116) L.W. (92-6)

2шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5) Hex, 5/16"-24 x 1 1/4", G5

2шт.

15

F53916

CLIP - left shield

1шт.

16

195-525

WASHER,3/8", SAE

- 3/8" std.

1шт.

17

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N. F. hex.

1шт.

18

F54334

SPACER

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

129-123

NUT,3/8"-24, G5

1шт.

21

F53887

KEY SLOT - point hook

5шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N. F. hex. (304)

5шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N. F. hex. (404)

4шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N. F. hex., nut (25-116) L.W. (92-6) (404)

1шт.

22

F54437

BRACE - chain and pivot, L.H. outer (304)

2шт.

22

F54437

BRACE - chain and pivot, L.H. outer (404)

4шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(304) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(404) Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.
