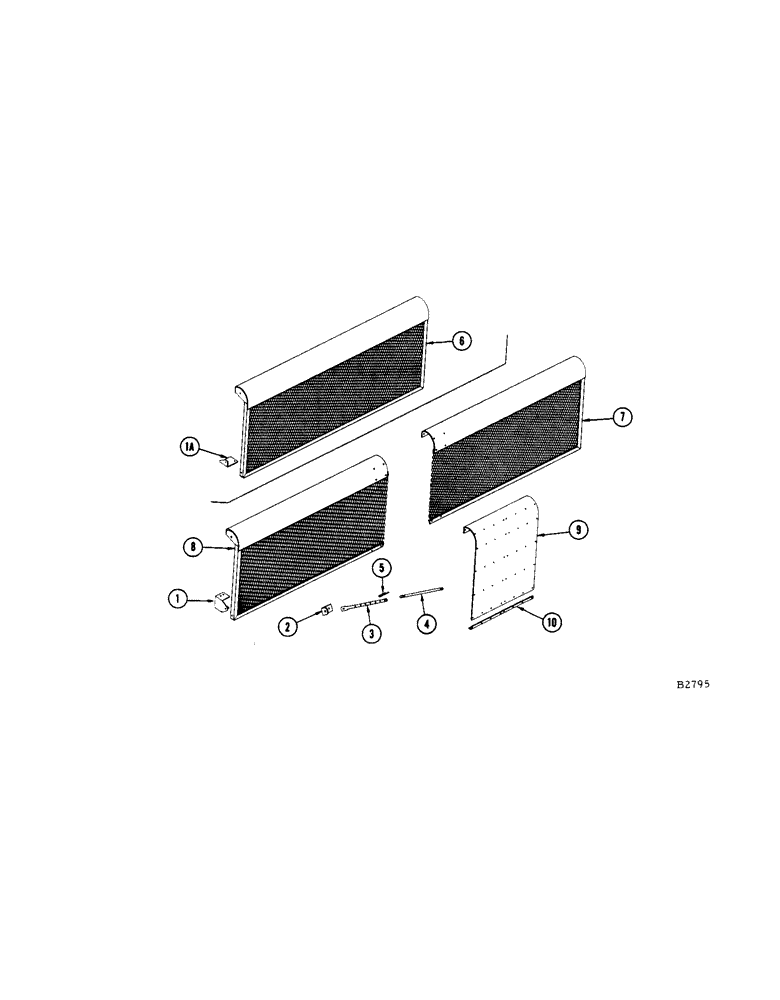

Запчасти Case IH 303 (96[1]) - TALL CORN SCREEN (58) - ATTACHMENTS/HEADERS

1

F53496

BRACKET - trash basket supt. (3 and 4 row)

2шт.

1a

F53485

BRACKET - R.H. supt., trash basket (402)

1шт.

F53486

BRACKET - L.H. supt., trash basket (402)

1шт.

2

F53487

BRACKET - lower telescoping pipe

2шт.

3

F92629

PIPE - lower telescoping brace

2шт.

4

F53488

PIPE - upper telescoping brace

2шт.

5

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER - 1/2" hair pin

2шт.

6

F92625

SHIELD - corn (402)

1шт.

F92700

SHIELD - corn (303)

1шт.

7

F92635

SHIELD - corn, L.H. (304)

1шт.

F92696

SHIELD - corn, L.H. (404)

1шт.

8

F92632

SHIELD - corn, R.H. (304)

1шт.

F92693

SHIELD - corn, R.H. (404)

1шт.

9

F53495

SUPPORT - tie, upper screen (4 row)

1шт.

10

F53497

SUPPORT - tie lower screen (4 row)

1шт.
