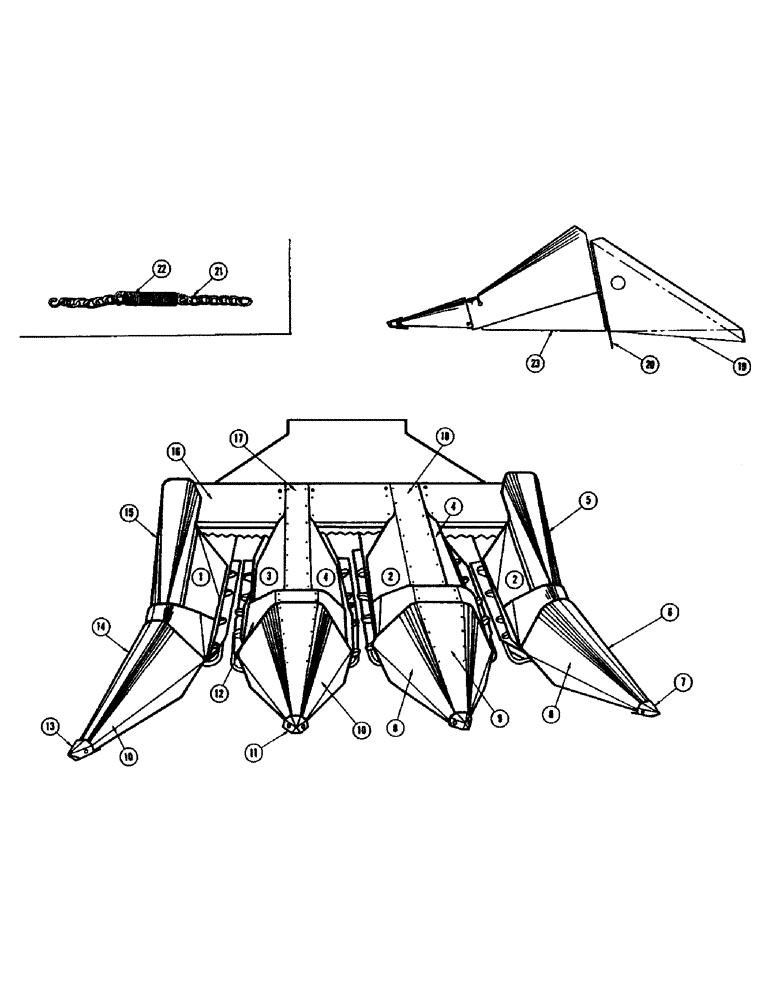

Запчасти Case IH 303 (56) - STALKWAY AND FLOATING POINTS - 303 (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F92505
STALK SHEET - outer, R.H.
1шт.
14-656
SCREW,3/8" - 24 x 3 1/2"
BOLT - 3/8" x 3-1/2" N. F. hex.
5шт.
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N. F. hex., L.W. (92-6)
6шт.
175-451
SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"
- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114)
2шт.
2
F92523
STALK SHEET - outer, L.H.
2шт.
COMMODITIES - double that of ref. 1
1шт.
3
F92990
STALK SHEET - inner, R.H.
1шт.
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
Nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd
4шт.
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N. F. hex., L.W. (92-6)
2шт.
92-5
LOCK WASHER,5/16"
6шт.
175-451
SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"
- 1/4" x 1-1/2" N. F. tr. hd. mach., nut (25-114)
2шт.
4
F92991
STALK SHEET - inner, L.H.
2шт.
COMMODITIES - double that of ref. 3
1шт.
5
F92598
FINISH SHEET - left
1шт.
77-412
SCREW
- 1/4" x 3/4" N. C. tr. hd. mach., nut (25-104)
2шт.
77-48
SCREW,Truss, 1/4" - 20 x 1/2"
- 1/4" x 1/2" N. C. tr. hd. mach., nut (25-104)
5шт.
77-512
SCREW
- 5/16" x 3/4" N. C. tr. hd. mach., nut (25-105)
2шт.
77-58
SCREW - 5/16" x 1/2" N. C. tr. hd. mach., nut (25-105)
3шт.
6
F92127
POINT - L.H., outer, finish half
1шт.
175-451
SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"
- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114)
5шт.
7
F92124
SHOE - skid, L.H. point
1шт.
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
Nut (25-116) Hex, 3/8"-24 x 3/4", G5, Full Thd
1шт.
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
- 1/2" x 1-1/2" N. F. hex., nut (25-118)
1шт.
8
F92125
POINT - R.H. half
3шт.
F53909
WASHER - vinyl, for skid shoe bolts
4шт.
9
F53914
FILLER - center point, 29"
2шт.
175-451
SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"
- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114)
20шт.
10
F92119
POINT - L.H. half
3шт.
11
F92129
SHOE - skid, inner point
2шт.
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
Nut (25-116) Hex, 3/8"-24 x 3/4", G5, Full Thd
2шт.
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
- 1/2" x 1-1/2" N.F. hex., nut (25-118)
2шт.
12
F53880
SHEET - 29" shoulder filler, lower
2шт.
175-412
SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
- 5/16" x 1/2" tr. hd. mach., nut (129-102) L.W. (192-20)
12шт.
13
F92118
SHOE - skid, R. H. point
1шт.
COMMODITIES - same as for ref. 7
1шт.
14
F92121
POINT - R.H. outer finish half
1шт.
175-451
SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"
- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114)
5шт.
15
F92597
FINISH SHEET - right
1шт.
COMMODITIES - same as for ref. 5
1шт.
16
F53696
COVER - row beater
3шт.
77-48
SCREW,Truss, 1/4" - 20 x 1/2"
- 1/4" x 1/2" N. F. tr. hd. mach., nut (131-120)
18шт.
17
F53879
SHEET - 29" center filler, upper
1шт.
187-459
SCREW - #14A x 3/4" tr. hd., L.W. (193-57)
14шт.
18
F53878
SHEET - 29" outer filler, upper
1шт.
187-459
SCREW - #14A x 3/4" tr. hd., L.W. (193-57)
14шт.
19
F92154
SHIELD - wheel, L.H.
1шт.
F92152
SHIELD - wheel, R.H.
1шт.
20
F53981
ROD - hinge, wheel shield
2шт.
21
F92122
CHAIN - support, point
4шт.
22
F53984
SPRING - extension, point
4шт.
23
F92527
GUARD - stalk, R.H.
1шт.
F92528
GUARD - stalk, L.H.
1шт.
Выбрано товаров: 52
