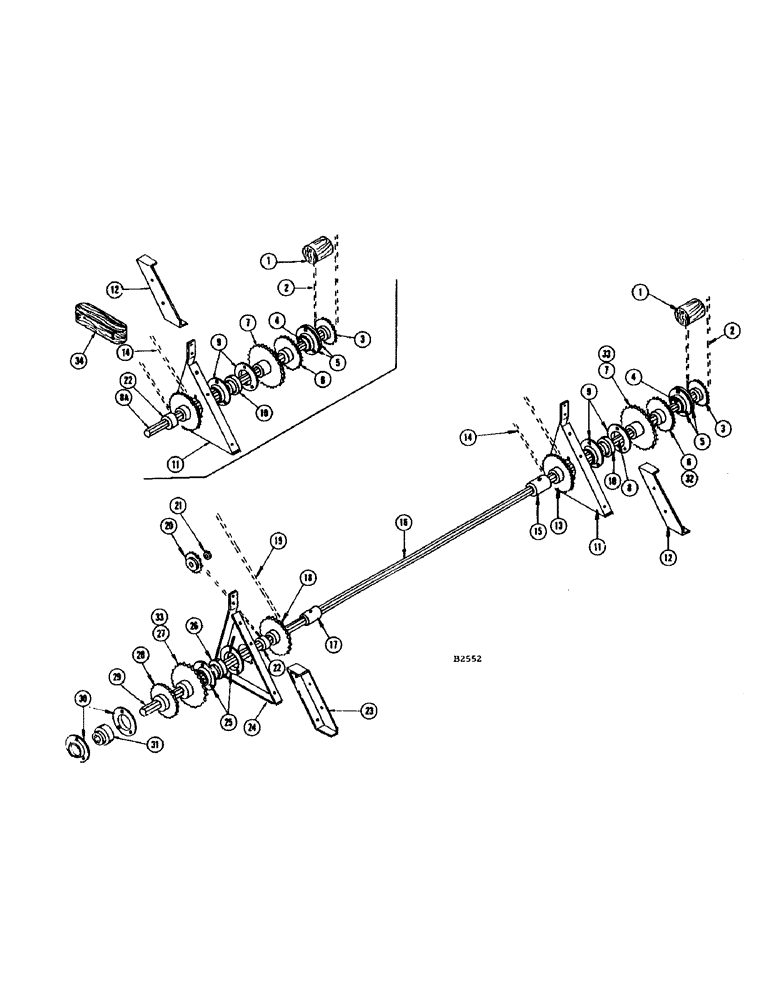

Запчасти Case IH 303 (46) - MAIN DRIVE JACKSHAFT AND SPROCKETS, 402 - 303 (58) - ATTACHMENTS/HEADERS

1

3051/2CH

ROLLER

IDLER - wood block

1шт.

O418L

WASHER

1шт.

F62217

WASHER

1шт.

2

F92191

X

CHAIN - cross auger drive (NSS - see page 5

1шт.

3

F92095

SPROCKET - (21T) cross auger drive

1шт.

195-2125

WASHER,1 5/16" x 2" x .109"

- flat (402)

6шт.

135-262

PIN - 1/4" x 1-3/4" driv-loc type "B"

1шт.

4

F54506

BEARING - jackshaft (402)

1шт.

F53809

BEARING - 1-1/8" hex. bore (303)

1шт.

5

F62225

FLANGE

TTE - bearing plate (402)

2шт.

T17277

FLANGE

TTE - bearing plate (303)

2шт.

6

F92090

SPROCKET - (22T) gathering chain drive

1шт.

7

F92091

SPROCKET - (26T) roll drive

1шт.

8

F54307

JACKSHAFT - main drive, L.H. (303)

1шт.

8a

F54201

JACKSHAFT - main drive (402)

1шт.

9

F62225

FLANGE

TTE - bearing plate (402)

2шт.

T17277

FLANGE

TTE - bearing bracket (303)

2шт.

F16086

FLANGETTE - bearing bracket (Clipped) (303)

2шт.

10

F54506

BEARING - jackshaft (402)

1шт.

F53809

BEARING - jackshaft - 1-1/8" hex. bore (303)

1шт.

11

F92300

BRACKET - bearing, L.H. (303)

1шт.

F92589

BRACKET - bearing, L.H. (402)

1шт.

12

F53800

BRACE - L.H. bearing bracket

1шт.

A32450

WASHER

- 13/32" I. D. x 3/6" thick, flat

2шт.

13

F92093

SPROCKET - (30T) main drive (303)

1шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8" - 16 soc. hd. set (402)

2шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8" - 16 soc. hd. set (303)

1шт.

F92590

SPROCKET - (29T) main drive (402)

1шт.

14

F53986

X

CHAIN - main drive (303-660,960) see chain page (303)

1шт.

F54705

CHAIN - main drive (402-660,960) see chain page (402)

1шт.

F53836

X

CHAIN - main drive (303-1060,1160) see chain page (303)

1шт.

F54706

CHAIN - main drive (402-1060) see chain page (402)

1шт.

15

F53821

COUPLER - jackshaft (303)

1шт.

135-262

PIN - 1/4" x 1-3/4" driv-loc type B (303)

1шт.

16

F54308

EXTENSION - jackshaft (303)

1шт.

17

F53821

COUPLER - jackshaft (303)

1шт.

135-262

PIN - 1/4" x 1-3/4" driv-loc type "B" (303)

1шт.

18

F92162

SPROCKET - (30T) rake chain drive (303)

1шт.

19

T10256

CHAIN - rake chain drive (NSS-see chain page) (303)

1шт.

20

F78573

SPROCKET ASSY.

IDLER - rake chain Drive (303)

1шт.

21

F54174

SPACER - idler mounting (303)

1шт.

F12623

SPACER - idler mounting (402)

1шт.

22

F54117

COLLAR - jackshaft lock (402)

1шт.

22

F54117

COLLAR - jackshaft lock (303)

1шт.

181-643

SCREW - 3/8" - 16 x 1/2" hex. soc. set

1шт.

23

F53798

BRACE - R.H. bearing bracket (303)

1шт.

24

F92298

BRACKET - bearing R.H. (303)

1шт.

25

T17277

FLANGE

TTE - bearing bracket (303)

2шт.

F16086

FLANGETTE - bearing bracket (Clipped) (303)

2шт.

26

F53809

BEARING - 1-1/8" hex. bore (303)

1шт.

27

F92091

SPROCKET - (26T) roll drive (303)

1шт.

28

F92090

SPROCKET - (22T) gathering chain drive (303)

1шт.

29

F54306

JACKSHAFT - main drive, R.H. (303)

1шт.

30

T17277

FLANGE

TTE - bearing plate (303)

2шт.

31

F53809

BEARING - 1-1/8" hex. bore (303)

1шт.

32

F92229

SPROCKET - (26T) gathering drive chain (High speed) (303)

2шт.

33

F92228

SPROCKET - (22T) roll drive (High speed) (303)

2шт.

34

F4717

GUIDE - drive chain (402)

1шт.
