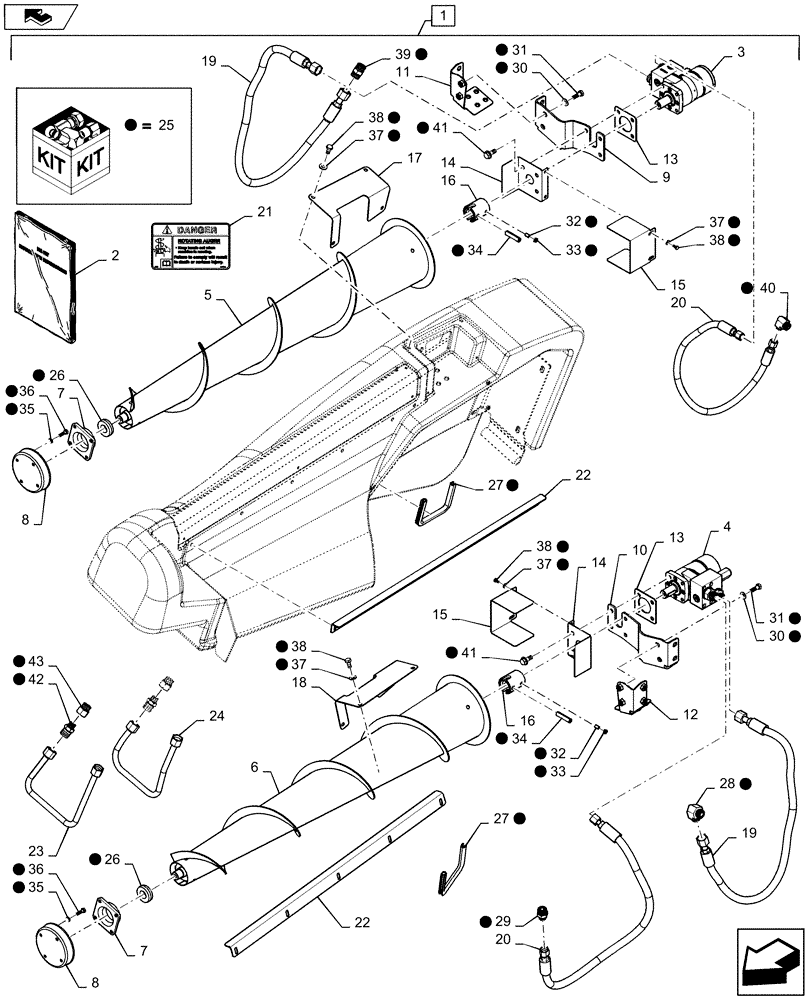

Запчасти Case IH 2612XR (88.058.01) - DIA KIT, HYDRAULIC AUGER DIVIDER ATTACHMENT (88) - ACCESSORIES

1

84339809

DIA KIT, HARVESTER

Hydraulic Auger Divider Attachment, Incl: 2 - 43

1шт.

2

84340404

INSTRUCTION

Kit, Installation Instrument, Auger Divider

1шт.

3

84142005

HYDRAULIC MOTOR

Assembly, With Valve And Footings

1шт.

4

84142006

HYDRAULIC MOTOR

Assembly, With Valve And Footings

1шт.

5

84278080

AUGER

Weld Assembly RH

1шт.

6

84278082

AUGER

LH Weld Assembly

1шт.

7

84976225

BEARING HOUSING

Housing, Red

2шт.

8

84278072

PROTECTION PLATE

Shield, Auger Bearing Black

2шт.

9

84205597

BRACKET

RH Motor Mount

1шт.

10

84205632

BRACKET

LH Motor Mount

1шт.

11

84205609

SUPPORT

RH Hood Weld Assembly

1шт.

12

84205638

SUPPORT

LH Hood Weld Assembly

1шт.

13

84198833

SPACER

Motor Mount

2шт.

14

84389671

SHIELD

Weld Assembly, Auger

2шт.

15

84389711

SHIELD

Auger

2шт.

16

84278079

COUPLING

Auger Drive Black

2шт.

17

84278064

COVER

Motor RH Hood

1шт.

18

84278066

COVER

Motor LH Hood

1шт.

19

87545822

HOSE ASSY.,12.70mm ID x 1013.00mm, SAE 100R16

2шт.

20

87609543

HOSE ASSY.

Rotary Screen - Pump To Tube

2шт.

21

84171750

DECAL

Danger, Rot Auger

2шт.

22

84164947

STRIPPER

2шт.

23

84136211

HYD TUBE

Assembly

1шт.

24

84136212

HYD TUBE

Assembly

1шт.

25

84340479

DIA KIT, HARVESTER

Auger Divider Attachment Hardware

1шт.

26

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

Ball

2шт.

27

237682A1

PROTECTION STRIP

Trim Edge Black

2шт.

28

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

Union

1шт.

29

84431302

HYD CONNECTOR,1"-14 ORFS x 13/16"-16 ORFS

Connector, Jump

1шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

31

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

16шт.

32

300477

SET SCREW,M8 x 16mm

2шт.

33

9706690

NUT,M8 x 1.25, Cl 8

2шт.

34

278910

LOCK PIN,12mm OD x 55mm L, Slotted

2шт.

35

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

8шт.

36

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

38

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

12шт.

39

84431473

HYD CONNECTOR,1"-14 ORFS

1шт.

40

84160006

FITTING

1шт.

41

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

42

86603051

HYD CONNECTOR,1" - 14 ORFS x 3/4" - 16 ORB

2шт.

43

84435046

COUPLING

Quick Cartridge Kit

2шт.
