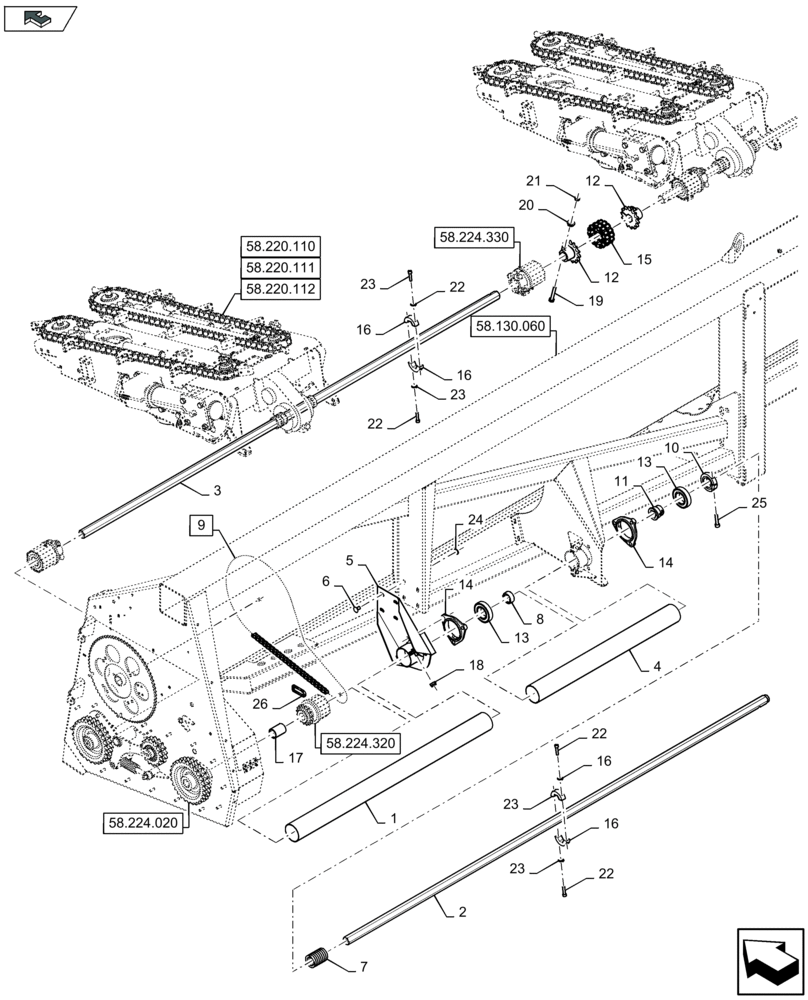

Запчасти Case IH 2612XR (58.224.040) - ROW UNIT DRIVES (58) - ATTACHMENTS/HEADERS

1

87483073

SHIELD

2шт.

2

87482241

SHAFT

2шт.

3

87482251

DRIVE SHAFT

2шт.

4

87594168

SHIELD

2шт.

5

87616441

SUPPORT

2шт.

6

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

8шт.

7

353561168

SPRING

2шт.

8

84977638

BUSHING

2шт.

9

87526100

CHAIN,50-1HV, 112 Links x 15.88mm = 1778mm

112 links = 1778 mm, Roller Chain 10A-14V, Incl 26

2шт.

10

87750435

LOCKING RING

2шт.

11

87750436

BUSHING

2шт.

12

322570650

DRIVEN SPROCKET

4шт.

13

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

14

300019980

SUPPORT

4шт.

15

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

2шт.

16

84977051

HALF-SHELL

8шт.

17

322525550

SLEEVE

2шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

19

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

20

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

21

100016

NUT,M10 x 1.5, Cl 8

12шт.

22

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

23

87016617

LOCK WASHER,M8

,, Serial Range: -C599

8шт.

23

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

,, Start Serial: D600

8шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

25

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

26

87532030

CONNECTING LINK

1шт.
