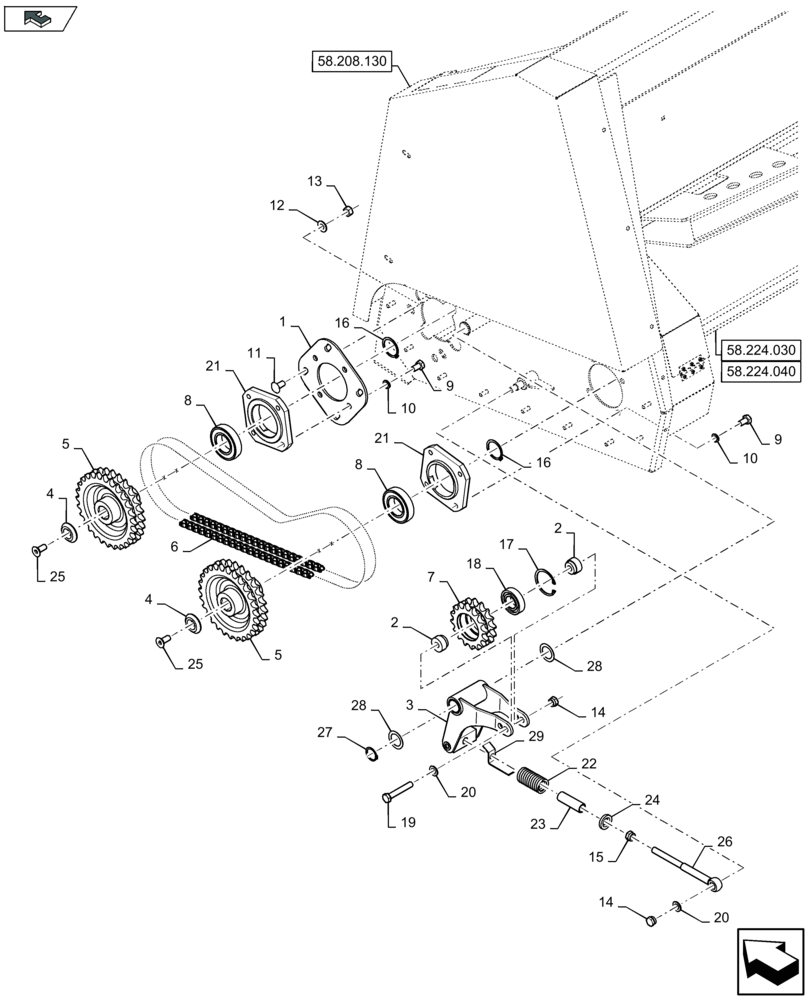

Запчасти Case IH 2612XR (58.224.020) - HEADER DRIVE (58) - ATTACHMENTS/HEADERS

1

87477885

STEEL PLATE

2шт.

2

84977534

BUSHING

4шт.

3

87758033

ARM

2шт.

4

322453050

LOCK WASHER

4шт.

5

87752746

SPROCKET

Z= 22

4шт.

5

47489187

SPROCKET

Z= 19, Start Serial: D637

2шт.

FOR LOW RPM ONLY

1шт.

6

87480340

CHAIN,A80-2, 66 Links x 25.4mm = 1676.4mm

2шт.

7

87752744

SPROCKET

Z= 13

2шт.

8

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

8шт.

9

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

28шт.

10

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

28шт.

11

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

13

9706685

NUT,M12 x 1.75, Cl 8

10шт.

14

100038

NUT,M12 x 1.75, Cl 8

4шт.

15

86000441

NUT,M16 x 2.0, Cl 8

2шт.

16

370007

SNAP RING,M45, Ext

4шт.

17

370012

RING,M62, Internal

2шт.

18

28996530

BALL BEARING,30mm ID x 62mm OD x 16mm W

2шт.

19

350460

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

2шт.

20

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

21

87477884

BEARING HOUSING,96 mm ID x 110 mm OD x 23.5 mm

4шт.

22

87758095

EXPANDER

2шт.

23

87758096

TUBE,22 mm OD x 88 mm L

2шт.

24

87758098

WASHER

2шт.

25

84976774

SCREW,FLAT, M12 x 30mm, Cl 8.8

4шт.

26

87758094

EYEBOLT

2шт.

27

370003

SNAP RING,M30, External

2шт.

28

441176

WASHER,31mm ID x 45mm OD x 0.87mm Thk

4шт.

29

84152249

INDICATOR

1шт.
