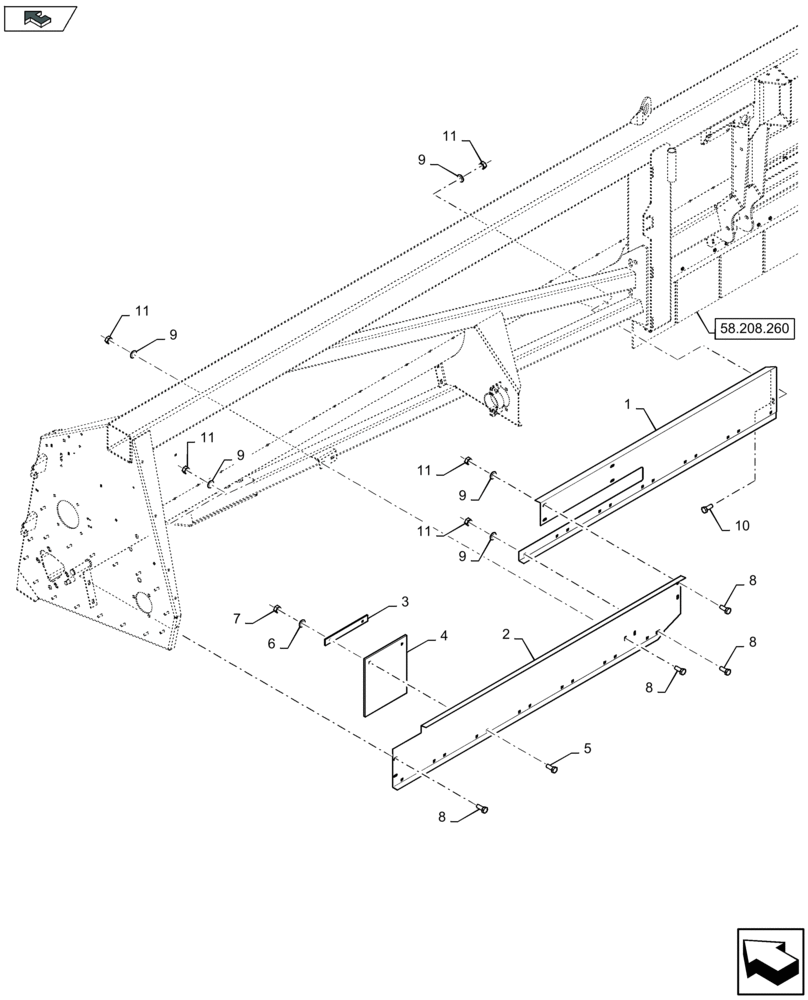

Запчасти Case IH 2612XR (58.208.250) - CHOPPER SHIELDINGS, LH (58) - ATTACHMENTS/HEADERS

1

87518716

PLATE

1шт.

FOR 2612XR ONLY

1шт.

1

87395099

PLATE

1шт.

FOR 2608XR ONLY

1шт.

2

87518671

PLATE

1шт.

FOR 2612XR ONLY

1шт.

2

87517229

PLATE

1шт.

FOR 2608XR ONLY

1шт.

3

84977660

FIXING PLATE

12шт.

4

84977584

CANVAS

12шт.

5

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

24шт.

6

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

24шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

24шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

10

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

,, Serial Range: -C579

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

11шт.
