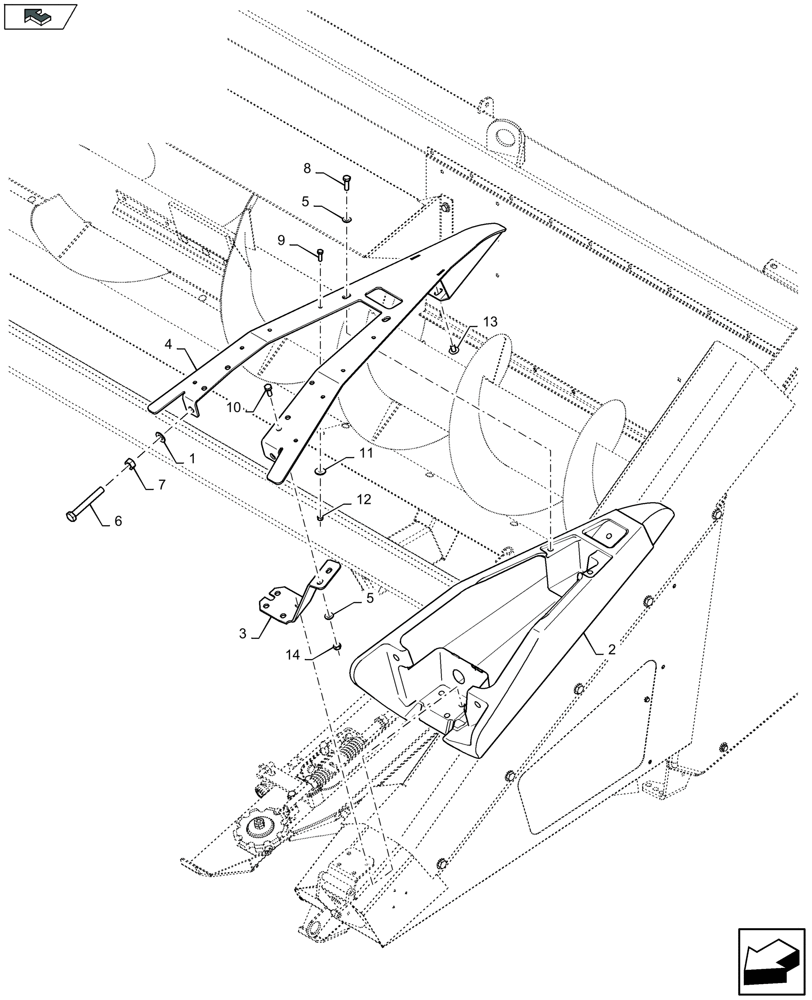

Запчасти Case IH 2612XR (58.130.155) - END DIVIDER, LH & RH - C585 (58) - ATTACHMENTS/HEADERS

1

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

2

87630357

DIVIDER

LH

1шт.

2

87630356

DIVIDER

RH

1шт.

3

87632446

REINFORCEMENT

LH

1шт.

3

87632445

REINFORCEMENT

RH

1шт.

4

87632654

STEEL PLATE

RH

1шт.

4

87632618

STEEL PLATE

LH

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

2шт.

7

9706685

NUT,M12 x 1.75, Cl 8

2шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

8шт.

12

86512440

NUT,M6, Cl 10

8шт.

13

84977577

SCREW,M8 x 16mm, Cl 5.8

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.
