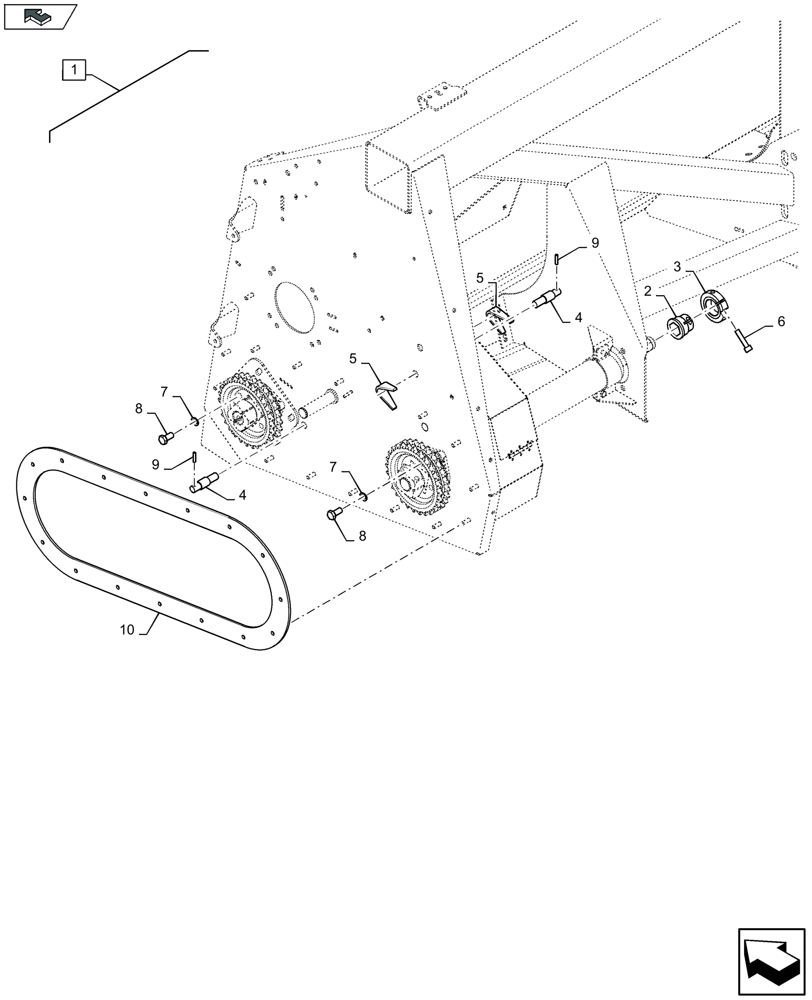

Запчасти Case IH 2608XR (58.224.910) - HEADER DRIVE REPAIR KIT (58) - ATTACHMENTS/HEADERS

1

87499011

FIP KIT

Incl 2 - 10

1шт.

2

87750436

BUSHING

2шт.

3

87750435

LOCKING RING

2шт.

4

87751719

PIN

3шт.

5

87751717

REINFORCEMENT

3шт.

6

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

7

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

16шт.

8

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

16шт.

9

130045

PIN,5mm OD x 26mm L, Slotted

3шт.

10

84977588

GASKET

2шт.
