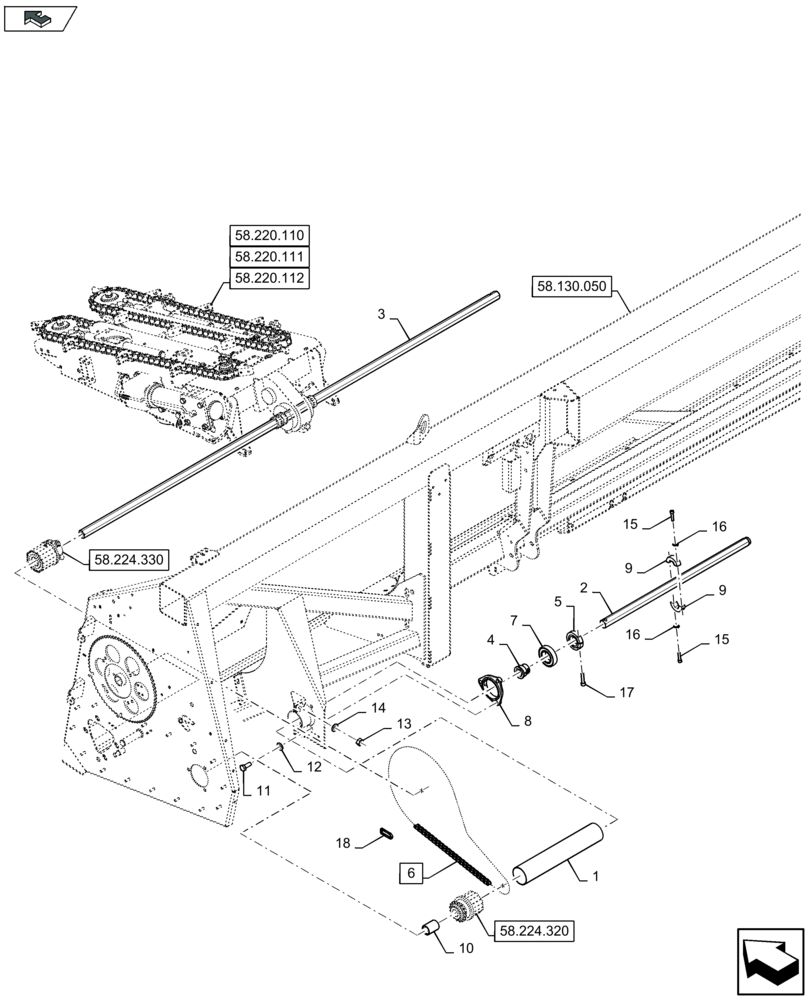

Запчасти Case IH 2608XR (58.224.070) - ROW UNIT DRIVES (58) - ATTACHMENTS/HEADERS

1

87395110

SHIELD

LH

1шт.

1

87517217

SHIELD

RH

1шт.

2

87517216

SHAFT

2шт.

3

87395091

DRIVE SHAFT

2шт.

4

87750436

BUSHING

2шт.

5

87750435

LOCKING RING

2шт.

6

87526100

CHAIN,50-1HV, 112 Links x 15.88mm = 1778mm

Incl 18

1шт.

7

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

2шт.

8

300019980

SUPPORT

2шт.

9

84977051

HALF-SHELL

2шт.

10

322525550

SLEEVE

1шт.

11

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

14

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

,, Serial Range: -C599

4шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

,, Start Serial: D600

4шт.

15

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

2шт.

16

80681

LOCK WASHER,5/16"

2шт.

17

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

18

87532030

CONNECTING LINK

1шт.
