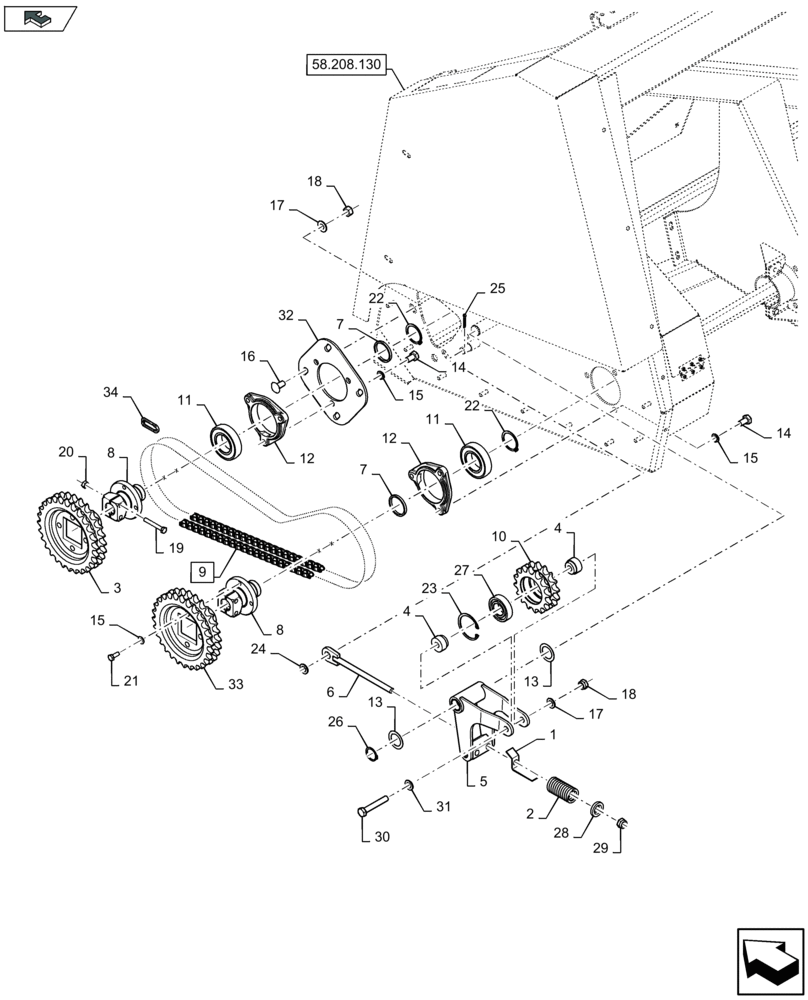

Запчасти Case IH 2608XR (58.224.050) - HEADER DRIVE (58) - ATTACHMENTS/HEADERS

1

84989032

INDICATOR

2шт.

2

9817602

SPRING

2шт.

3

87622277

DRIVING GEAR

26T

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

3

84977238

DRIVEN SPROCKET

28T

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

3

87568038

DRIVING GEAR

30T

2шт.

FOR MIDRANGE COMBINES ONLY

1шт.

4

84977641

BUSHING

4шт.

5

84977529

IDLER LEVER

2шт.

6

84977640

THREADED ROD

3шт.

7

84977639

RING

4шт.

8

84977568

HUB

4шт.

9

84977338

CHAIN,#60-2, 88 Links x 19.05mm = 1676.4mm

Incl 34

2шт.

10

84976526

DRIVEN SPROCKET

2шт.

11

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

12

300019980

SUPPORT

4шт.

13

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

1шт.

14

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

16

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

18

9706685

NUT,M12 x 1.75, Cl 8

1шт.

19

120071

BOLT,Hex, M10 x 65, 8.8

8шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

21

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

16шт.

22

370007

SNAP RING,M45, Ext

4шт.

23

370012

RING,M62, Internal

2шт.

24

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

25

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

26

370002

CIRCLIP,M25, External

2шт.

27

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

2шт.

28

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

29

412126

NUT,M12 x 1.75

2шт.

30

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

31

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

32

84977230

COVER PLATE

2шт.

33

87568038

DRIVING GEAR

30T

2шт.

FOR MIDRANGE COMBINES ONLY

1шт.

33

84977238

DRIVEN SPROCKET

28T

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

34

340437624

LINK CHAIN,#60-2, 19.05mm Pitch

1шт.
