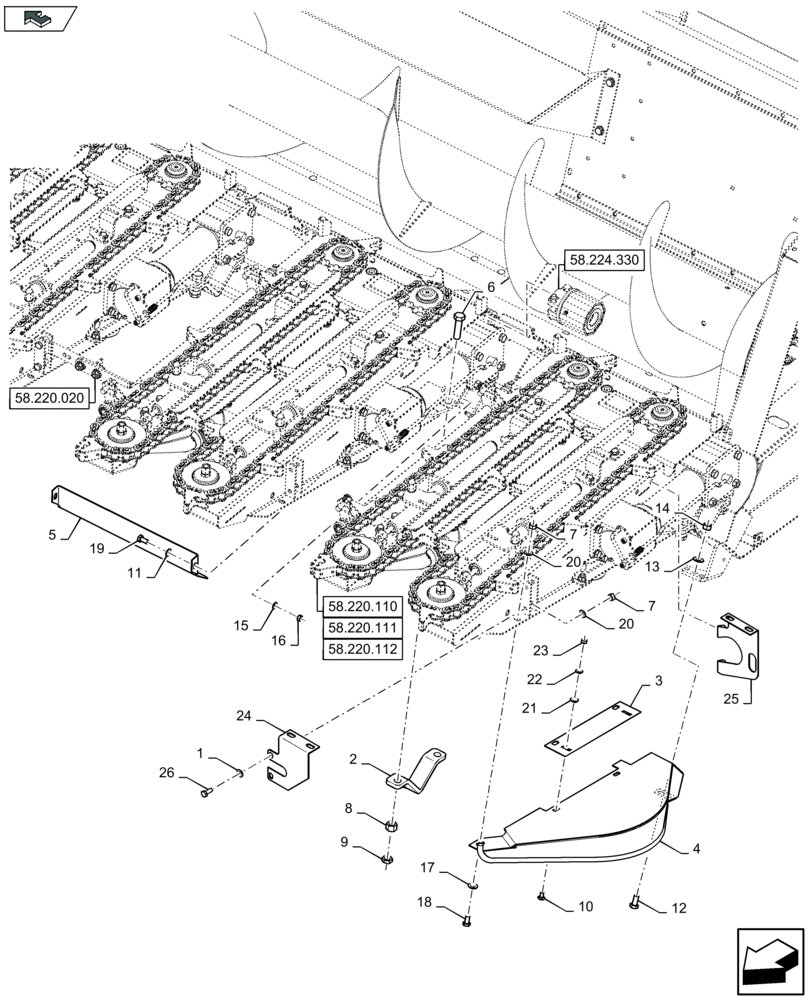

Запчасти Case IH 2608XR (58.220.010) - ROW UNIT (58) - ATTACHMENTS/HEADERS

1

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.

2

322422250

RETAINER COLLAR

12шт.

FOR 2606XR ONLY

1шт.

2

322422250

RETAINER COLLAR

24шт.

FOR 2612XR ONLY

1шт.

2

322422250

RETAINER COLLAR

16шт.

FOR 2608XR ONLY

1шт.

3

322462050

COVER PLATE

1шт.

4

322531350

SHIELD

1шт.

5

322630550

SHIELD

6шт.

FOR 2606XR ONLY

1шт.

5

322630550

SHIELD

12шт.

FOR 2612XR ONLY

1шт.

5

322630550

SHIELD

8шт.

FOR 2608XR ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

20шт.

FOR 2608XR ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

24шт.

FOR 2606XR ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

48шт.

FOR 2612XR ONLY

1шт.

7

100016

NUT,M10 x 1.5, Cl 8

1шт.

8

10790521

NUT,M16 x 1.5, Cl 10

24шт.

FOR 2606XR ONLY

1шт.

8

10790521

NUT,M16 x 1.5, Cl 10

48шт.

FOR 2612XR ONLY

1шт.

8

10790521

NUT,M16 x 1.5, Cl 10

32шт.

FOR 2608XR ONLY

1шт.

9

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

24шт.

FOR 2606XR ONLY

1шт.

9

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

48шт.

FOR 2612XR ONLY

1шт.

9

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

32шт.

FOR 2608XR ONLY

1шт.

10

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

11

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

12

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

1шт.

17

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

18

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

NS

NOT SERVICED

O-Ring

2шт.

22

NS

NOT SERVICED

O-Ring

2шт.

23

NS

NOT SERVICED

Nut

2шт.

24

322447050

BRACKET

LH, Serial Range: -C587

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.

24

322450450

BRACKET

RH, Serial Range: -C587

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.

25

322446950

BRACKET

LH, Serial Range: -C587

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.

25

322446750

BRACKET

RH, Serial Range: -C587

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

FOR 2608XR AND 2612XR ONLY

1шт.
