(58.130.330) - KIT, SERVICE FOR CENTRAL LATCH

Запчасти Case IH 2608XR (58.130.330) - KIT, SERVICE FOR CENTRAL LATCH (58) - ATTACHMENTS/HEADERS

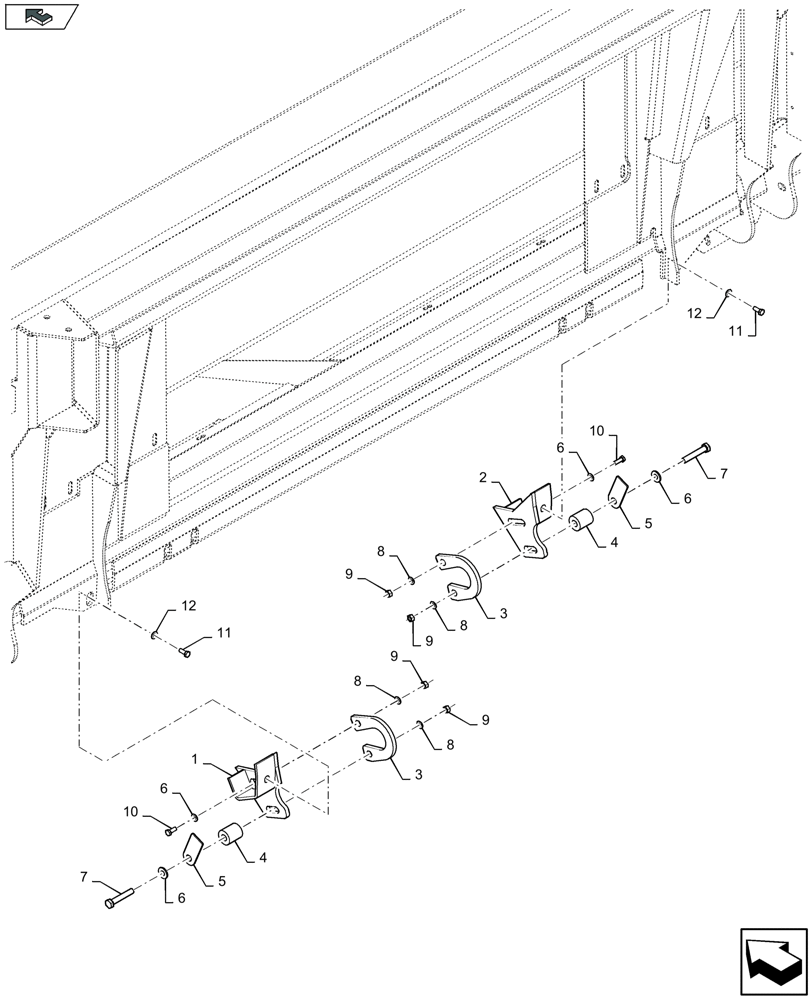

Схема запчастей Case IH 2608XR - (58.130.330) - KIT, SERVICE FOR CENTRAL LATCH (58) - ATTACHMENTS/HEADERS
8
11
3
3
6
4
11
2
10
6
8
5
8
1
home
8
12
4
5
9
9
6
12
9
7
6
9
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87755533

SUPPORT

LH

1шт.

2

87755534

SUPPORT

RH

1шт.

3

87689158

SUPPORT

2шт.

4

84015131

BUSHING

2шт.

5

87629907

PLATE

2шт.

6

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

7

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

9706685

NUT,M12 x 1.75, Cl 8

4шт.

10

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

11

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

12

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.
