Запчасти Case IH 2608XR (35.603.040) - QUICK COUPLING (35) - HYDRAULIC SYSTEMS

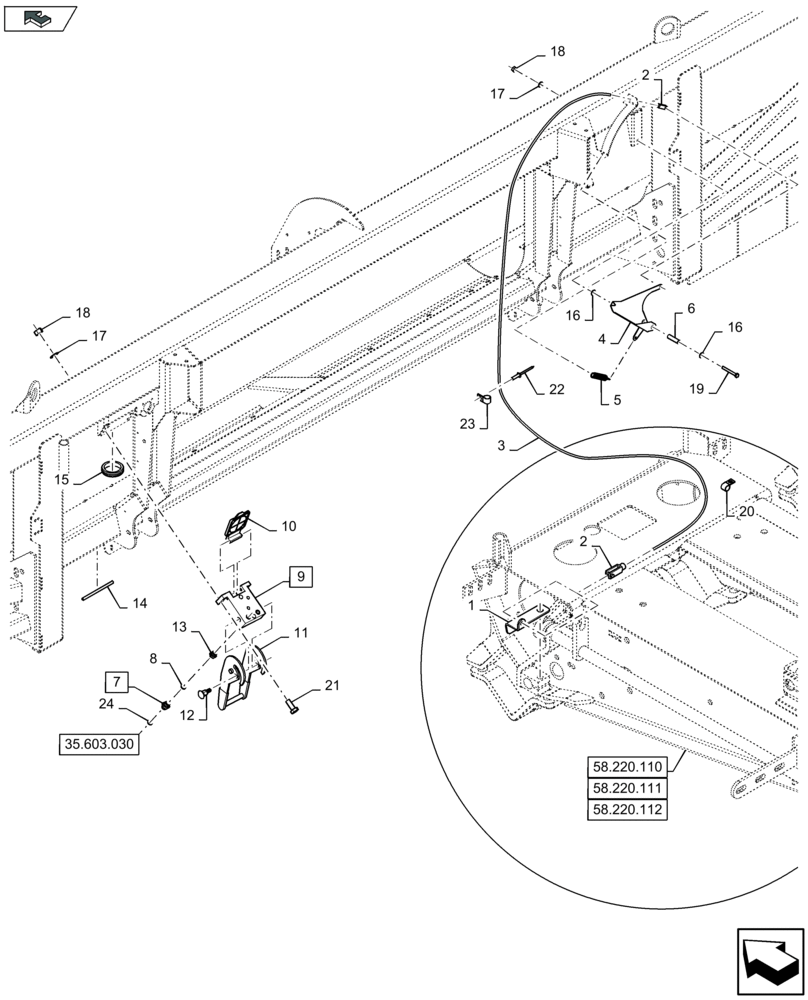

Схема запчастей Case IH 2608XR - (35.603.040) - QUICK COUPLING (35) - HYDRAULIC SYSTEMS
58.220.111
17
13
21
10
18
12
23
16
11
1
15
22
8
6
58.220.112
58.220.110
3
14
7
35.603.030
24
16
2
17
5
4
18
2
9
20
home
19

Артикул

Название

Примечание

Количество

1

84977721

SUPPORT

,, Serial Range: -C585

1шт.

1

84245559

HOLDER

,, Start Serial: D586

1шт.

2

322014450

YOKE,M6

2шт.

3

322442450

CABLE

1шт.

4

84977805

INDICATOR

1шт.

5

350356531

SPRING

1шт.

6

322442550

SPACER

1шт.

7

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 8, 24

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

9

84435009

COUPLING

Incl 10 - 13

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

10

84435044

GUARD

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

11

86623901

HANDLE

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

12

86623902

LATCH

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

13

84435047

COUPLING, QUICK, FEM

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

14

NH291525

EDGE

L= 0.13 M

1шт.

15

84005019

GROMMET

1шт.

16

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

,, Serial Range: -C599

3шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

,, Start Serial: D600

3шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

18

9706690

NUT,M8 x 1.25, Cl 8

7шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

19

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

20

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

21

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

22

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

2шт.

23

9507809

CLAMP,11.3mm ID, 6.7mm Bolt Hole, P Type

2шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

Выбрано товаров: 37
