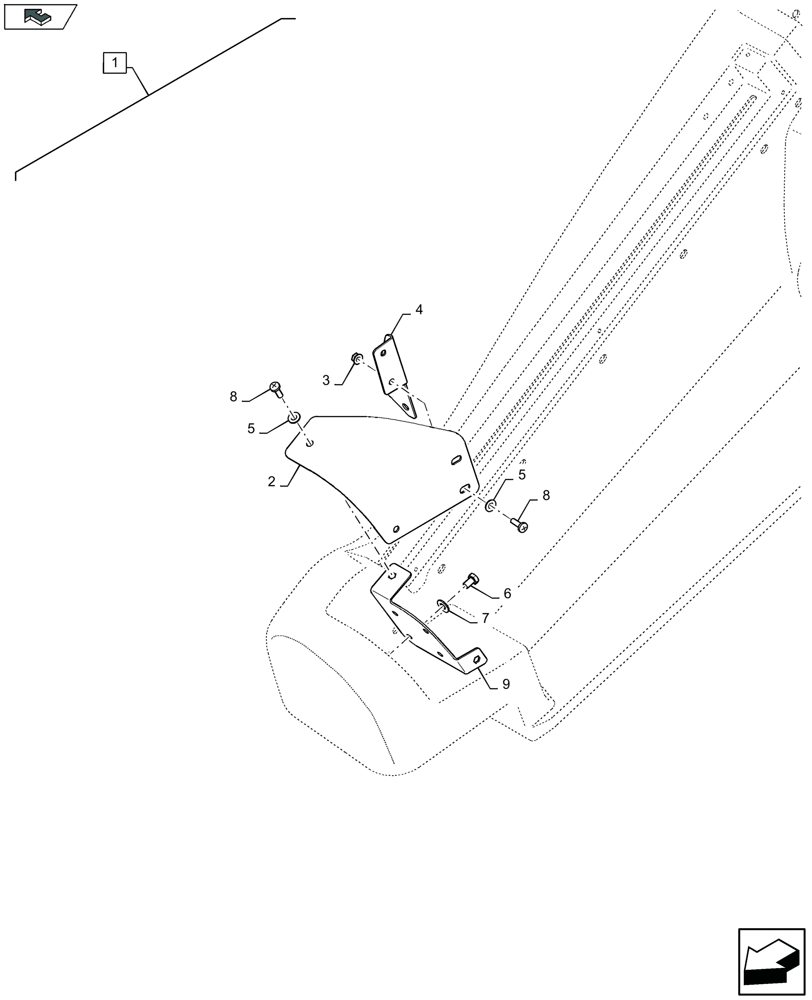

Запчасти Case IH 2608XR (88.058.010) - DIA KIT : SHIELDING FILLER PLATES (88) - ACCESSORIES

1

47427413

SERVICE KIT

Incl 2 - 9

1шт.

2

84482423

COVER

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

84576929

BRACKET

LH

1шт.

4

84583845

BRACKET

RH

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

7

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

8шт.

8

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

8шт.

9

84482422

MOUNT

LH

1шт.

9

84583865

MOUNT

RH

1шт.
