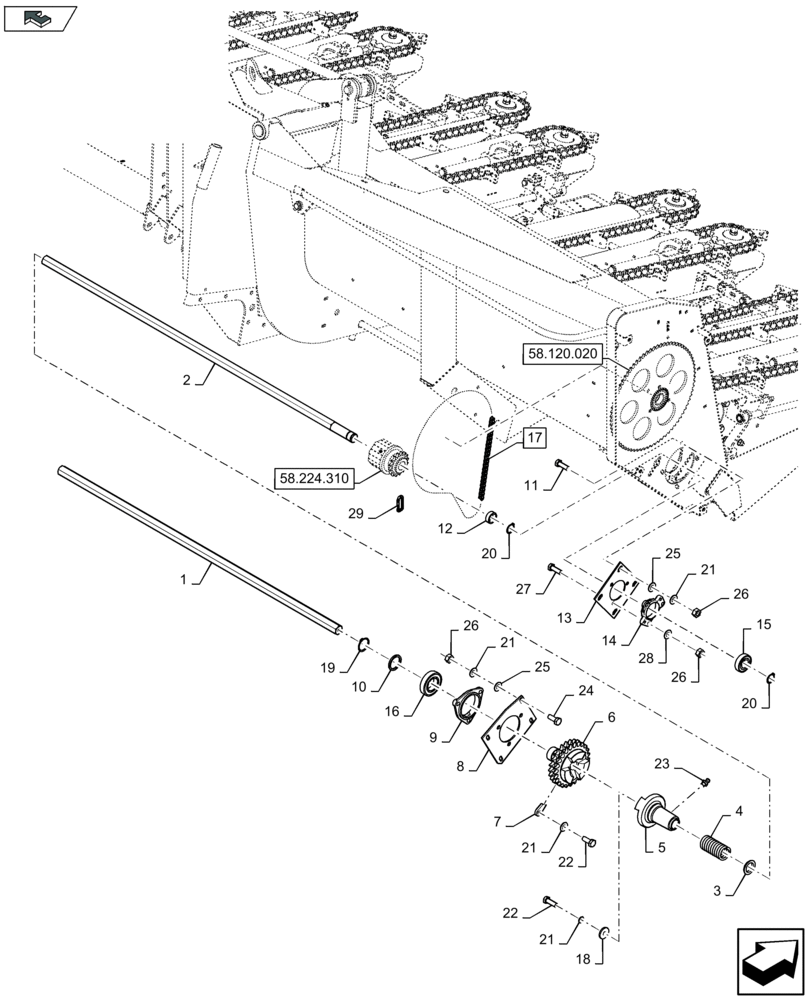

Запчасти Case IH 2608XF (58.224.210) - ROW UNIT DRIVES, RH (58) - ATTACHMENTS/HEADERS

1

322641750

BAR

1шт.

2

322429150

BAR

1шт.

3

322425150

WASHER

1шт.

4

353561168

SPRING

1шт.

5

84976909

SHAFT

1шт.

6

84976907

DRIVEN SPROCKET,25T

1шт.

7

84977303

PLATE

1шт.

8

322426450

COVER PLATE

1шт.

9

322422050

BEARING HOUSING

1шт.

10

344158113

BUSHING

1шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

12

322476150

BUSHING

1шт.

13

322426350

COVER PLATE

1шт.

14

300016557

SUPPORT

1шт.

15

340411237

BALL BEARING,30mm ID x 62mm OD x 16mm W

1шт.

16

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

17

87526099

CHAIN,50-1HV, 92 Links x 15.88mm = 1460.5mm

Incl 29, Roller Chain, L=1460.5MM

1шт.

18

355521050

WASHER,10.5mm ID x 40mm OD x 4.93mm Thk

1шт.

19

370007

SNAP RING,M45, Ext

1шт.

20

370003

SNAP RING,M30, External

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

23

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

24

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

8шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

1шт.

27

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

28

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

29

87532030

CONNECTING LINK

1шт.
