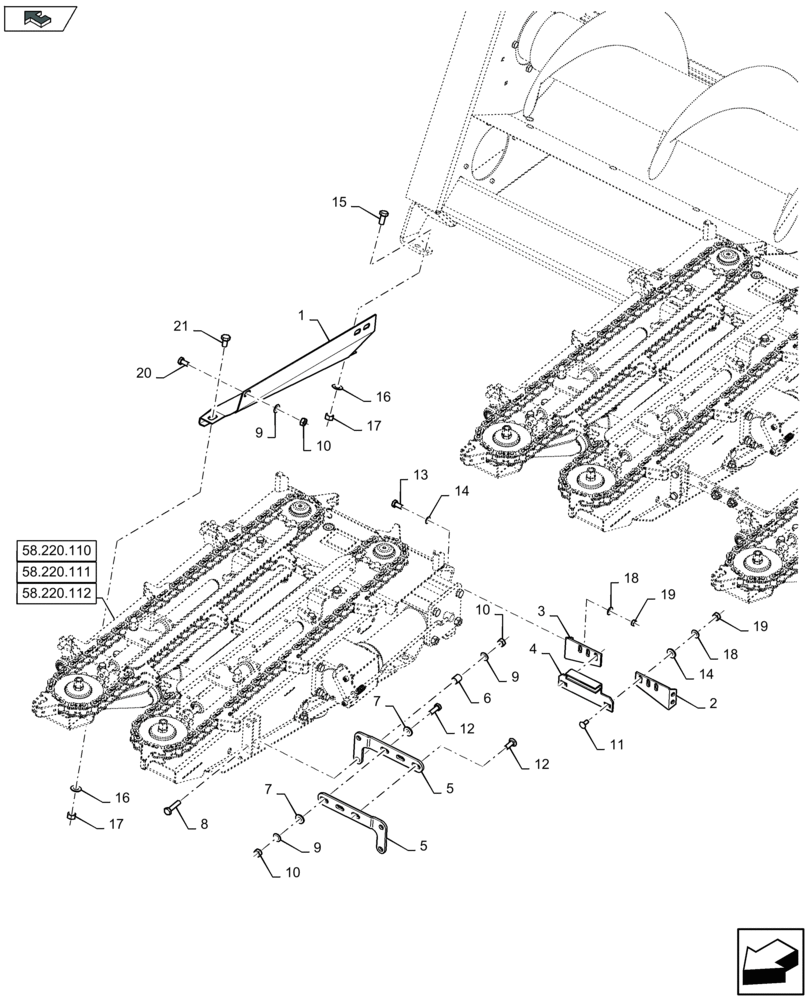

Запчасти Case IH 2608XF (58.220.040) - ROW UNIT (58) - ATTACHMENTS/HEADERS

1

322556250

PLATE

1шт.

2

322423250

SUPPORT

5шт.

3

322423150

SUPPORT

5шт.

4

87696875

HINGE

5шт.

5

322474550

COVER PLATE

10шт.

6

322554950

BUSHING

30шт.

7

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

15шт.

8

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

,, Serial Range: -C567

22шт.

8

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

,, Start Serial: D568

22шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

100016

NUT,M10 x 1.5, Cl 8

1шт.

11

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

10шт.

12

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

10шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

15

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

19

9706690

NUT,M8 x 1.25, Cl 8

1шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

21

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.
