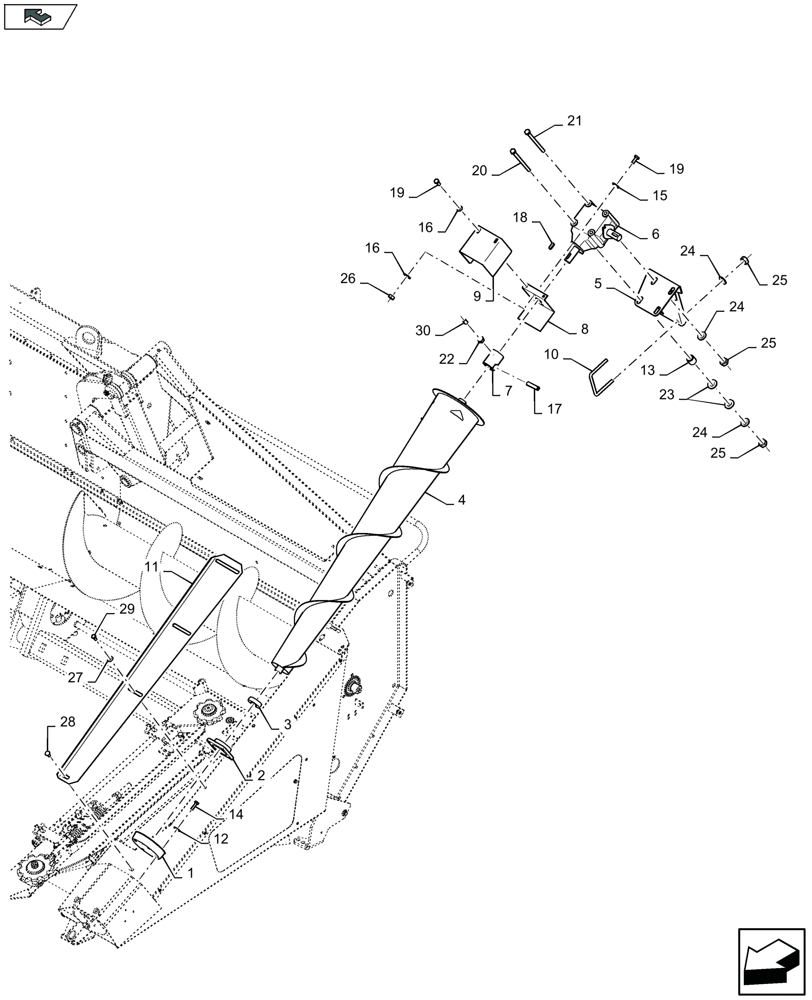

Запчасти Case IH 2608XF (58.212.030) - SIDE DIVIDERS (58) - ATTACHMENTS/HEADERS

1

84976235

PROTECTION CAP

1шт.

2

84976225

BEARING HOUSING

1шт.

3

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

4

84976231

AUGER

LH

1шт.

4

84976229

AUGER

RH

1шт.

5

84976227

SUPPORT

LH

1шт.

5

84976233

SUPPORT

RH

1шт.

6

84976269

GEARBOX

1шт.

6

84976269R

REMAN-GEARBOX

Reman Gearbox for PN 84976269

1шт.

84976269C

CORE-GEARBOX

Return Number

1шт.

7

84976237

HYD CONNECTOR

1шт.

8

84976000

GUARD

1шт.

9

84976267

GUARD

1шт.

10

322424050

BRACKET

2шт.

11

84976405

SUPPORT

LH

1шт.

11

84976407

SUPPORT

RH

1шт.

12

87016617

LOCK WASHER,M8

4шт.

13

340415211

BUSHING

2шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

15

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

17

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

18

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

20

212668

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8, Full Thd

2шт.

21

120118

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8, Full Thd

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

2шт.

23

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

25

100016

NUT,M10 x 1.5, Cl 8

9шт.

26

9706755

NUT,M6, Cl 8

1шт.

27

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

28

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

300477

SET SCREW,M8 x 16mm

1шт.
