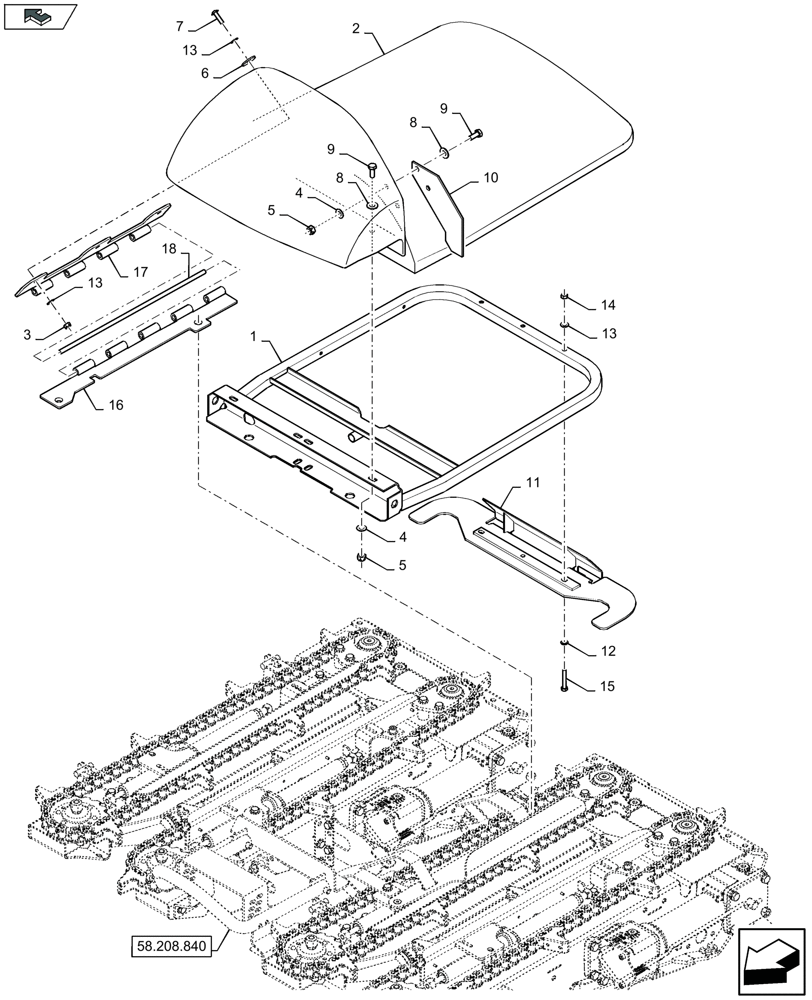

Запчасти Case IH 2608XF (58.208.830) - INNER HOOD (58) - ATTACHMENTS/HEADERS

1

87606492

BRACKET

1шт.

2

87626373

DIVIDER

LH

1шт.

2

87626374

DIVIDER

RH

1шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

6

12646205

WASHER,M8 x 35 x 3

3шт.

7

847-3830

SERRATED SCREW,Sl Truss, M8 x 30mm, Cl 10.9

3шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

10

86526475

FLAP

2шт.

11

84471155

HINGE

1шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

14

9706690

NUT,M8 x 1.25, Cl 8

3шт.

15

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

16

87598578

HALF-HINGE

LH

1шт.

16

87599781

HALF-HINGE

RH

1шт.

17

87599778

HALF-HINGE

1шт.

18

87622531

PIN

1шт.
