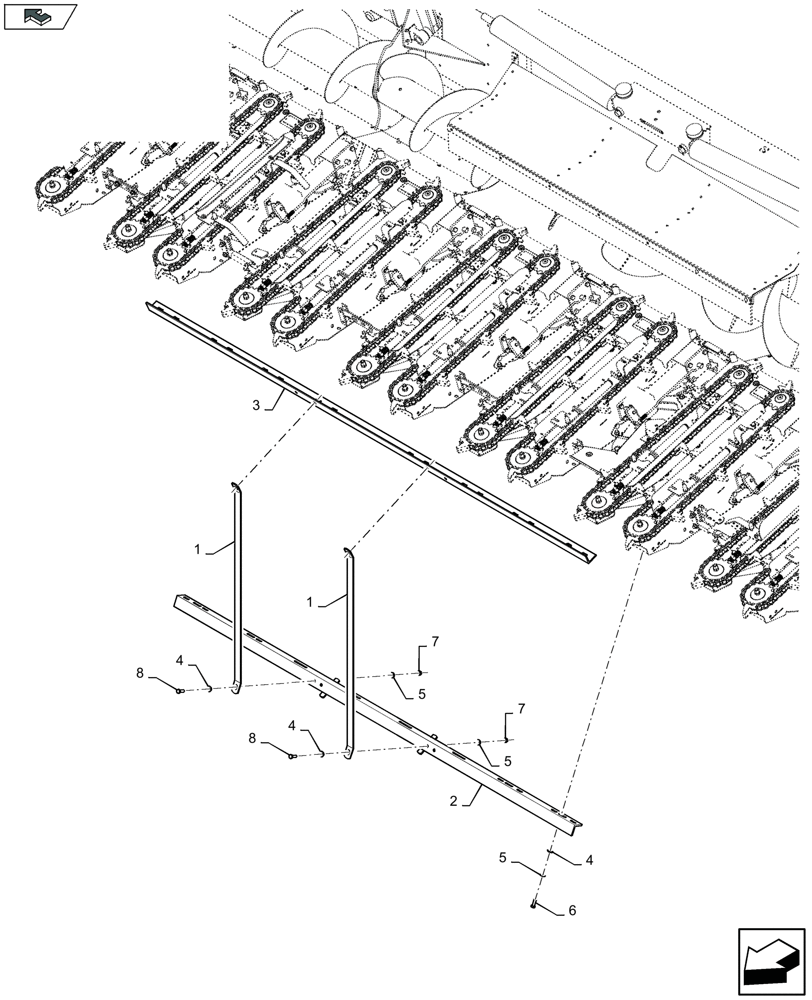

Запчасти Case IH 2608XF (58.208.710) - FIXATION KIT (58) - ATTACHMENTS/HEADERS

1

NS

NOT SERVICED

TIE-ROD

2шт.

2

84165513

ANGLE

1шт.

3

NS

NOT SERVICED

ANGLE

1шт.

4

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.
