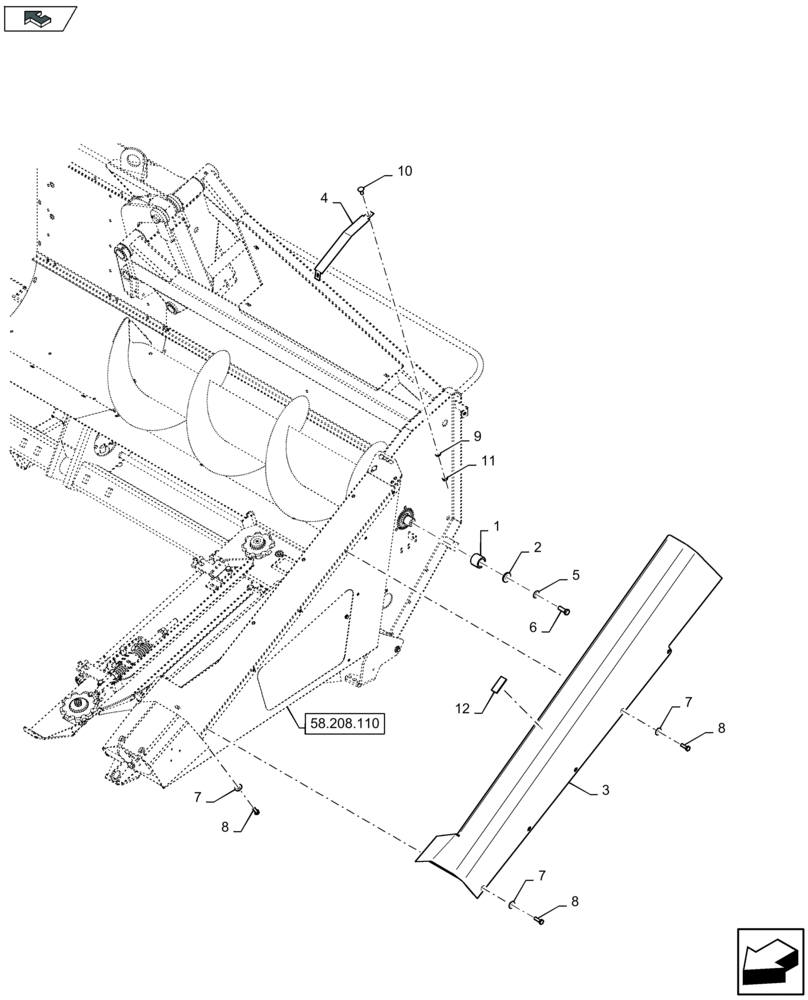

Запчасти Case IH 2608XF (58.208.410) - ADDITIONAL COVER FOR DIVIDERS, LH AND RH (58) - ATTACHMENTS/HEADERS

1

322530150

SPACER

1шт.

2

355511250

WASHER

1шт.

3

84976141

SHIELD

LH

1шт.

3

84976139

SHIELD

RH

1шт.

4

84976143

PLATE

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

7

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

10

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

84972786

FLEXIBLE SHEATH

1шт.
