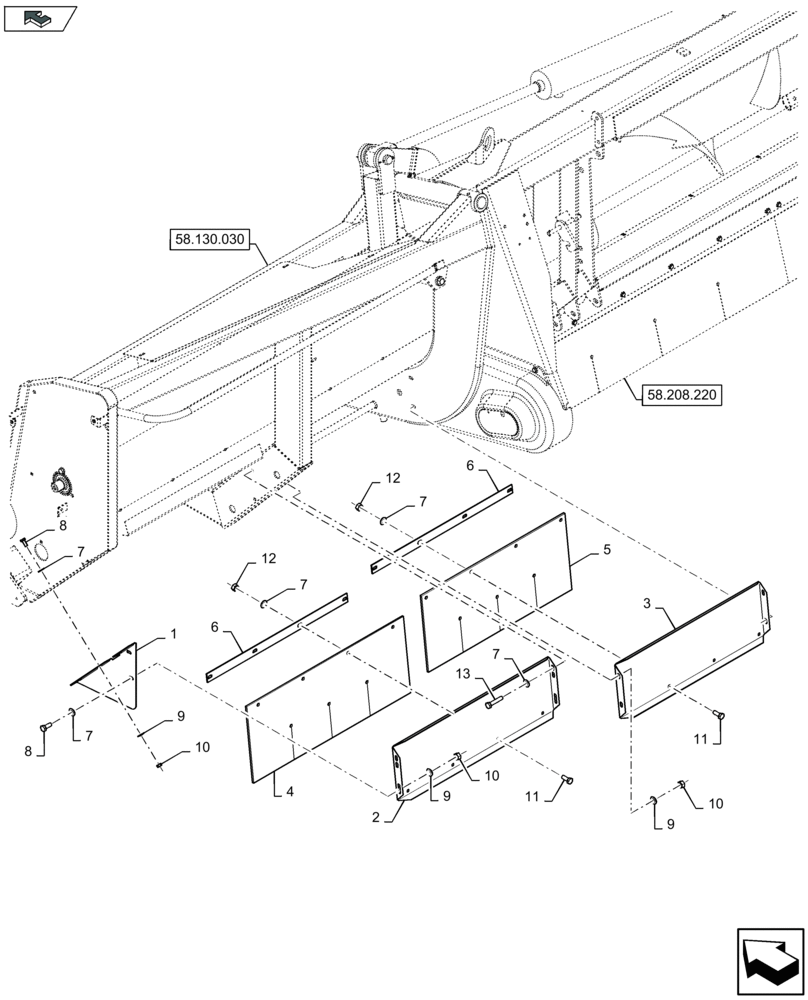

Запчасти Case IH 2608XF (58.208.210) - CHOPPER SHIELDINGS, LH (58) - ATTACHMENTS/HEADERS

1

84976389

BRACKET

1шт.

2

84976167

PLATE

1шт.

3

84976169

PLATE

1шт.

4

322454550

CANVAS,280mm W x 698mm L

1шт.

5

322454450

CANVAS

1шт.

6

84976391

COVER PLATE

2шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

9

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

9шт.

10

9706690

NUT,M8 x 1.25, Cl 8

9шт.

11

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

13

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.
