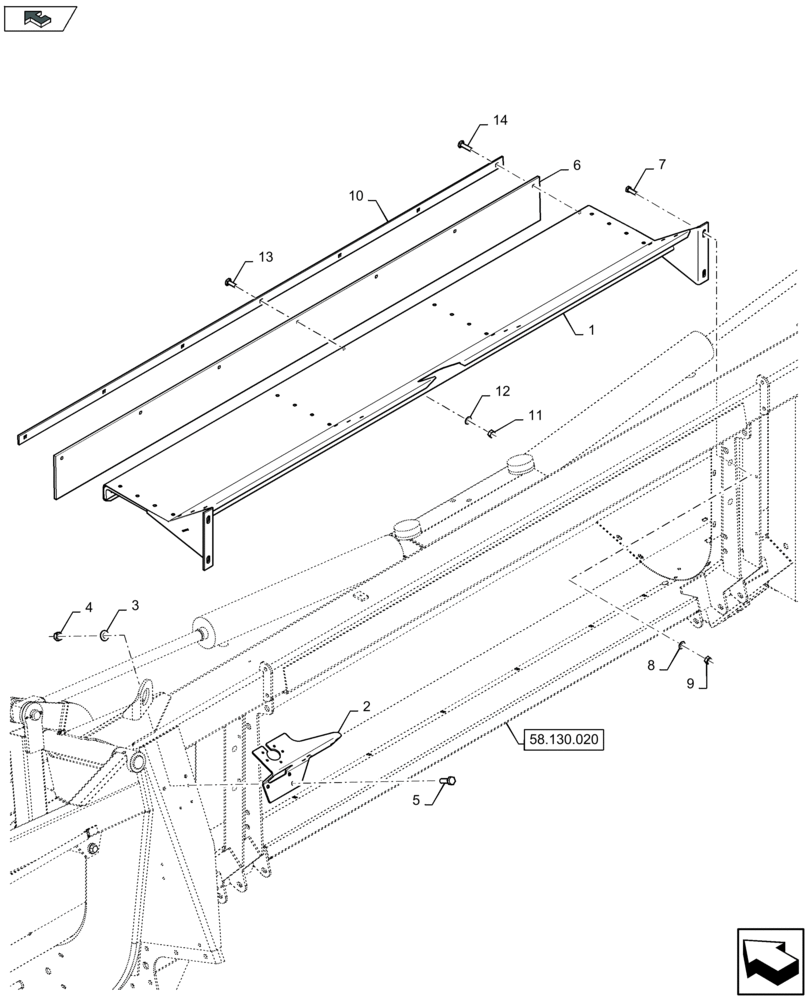

Запчасти Case IH 2608XF (58.208.020) - AUGER PROTECTION (58) - ATTACHMENTS/HEADERS

1

87538305

SHIELD

1шт.

2

84976899

SUPPORT

,, Serial Range: -C585

1шт.

2

84253451

SUPPORT

,, Start Serial: D586

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

4

9706690

NUT,M8 x 1.25, Cl 8

3шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

87538647

CANVAS

1шт.

7

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

100016

NUT,M10 x 1.5, Cl 8

4шт.

10

87538649

FIXING PLATE

1шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

12

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

7шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

3шт.

14

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.
