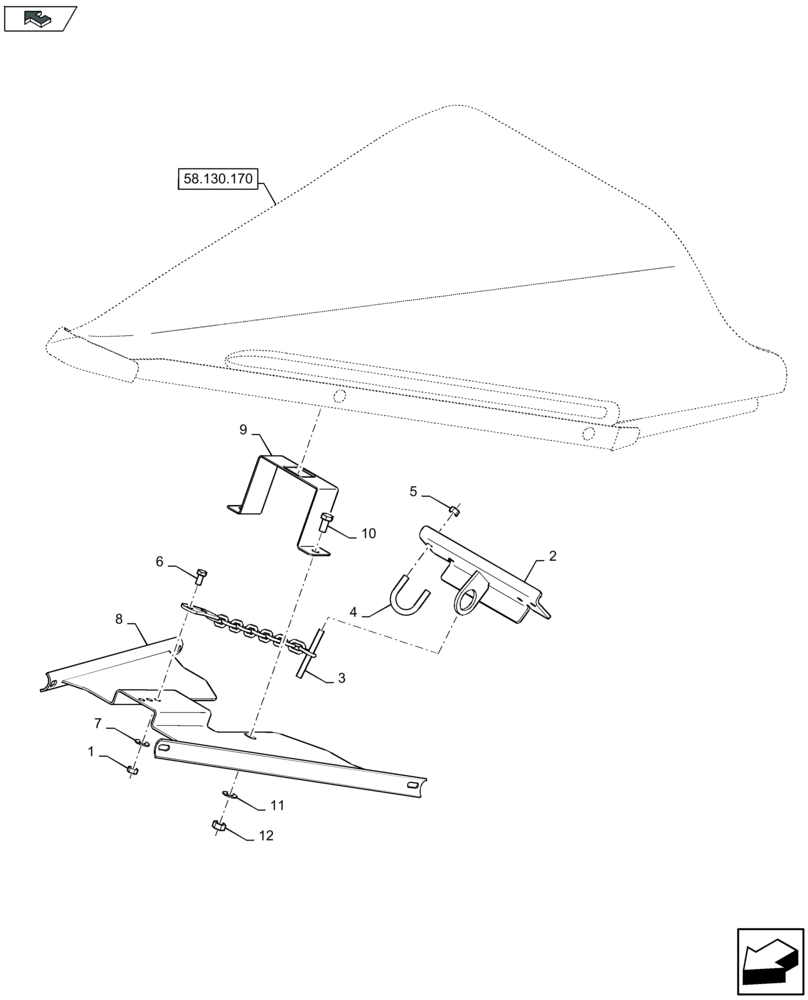

Запчасти Case IH 2608XF (58.130.160) - INNER DIVIDER SUPPORT (58) - ATTACHMENTS/HEADERS

1

9706690

NUT,M8 x 1.25, Cl 8

1шт.

2

87645622

SUPPORT

1шт.

3

87644780

CHAIN

1шт.

4

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

2шт.

5

230-4245

LOCK NUT,5/16"-18, GA

4шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

87645624

BRACKET

1шт.

9

87645623

BRACKET

1шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.
