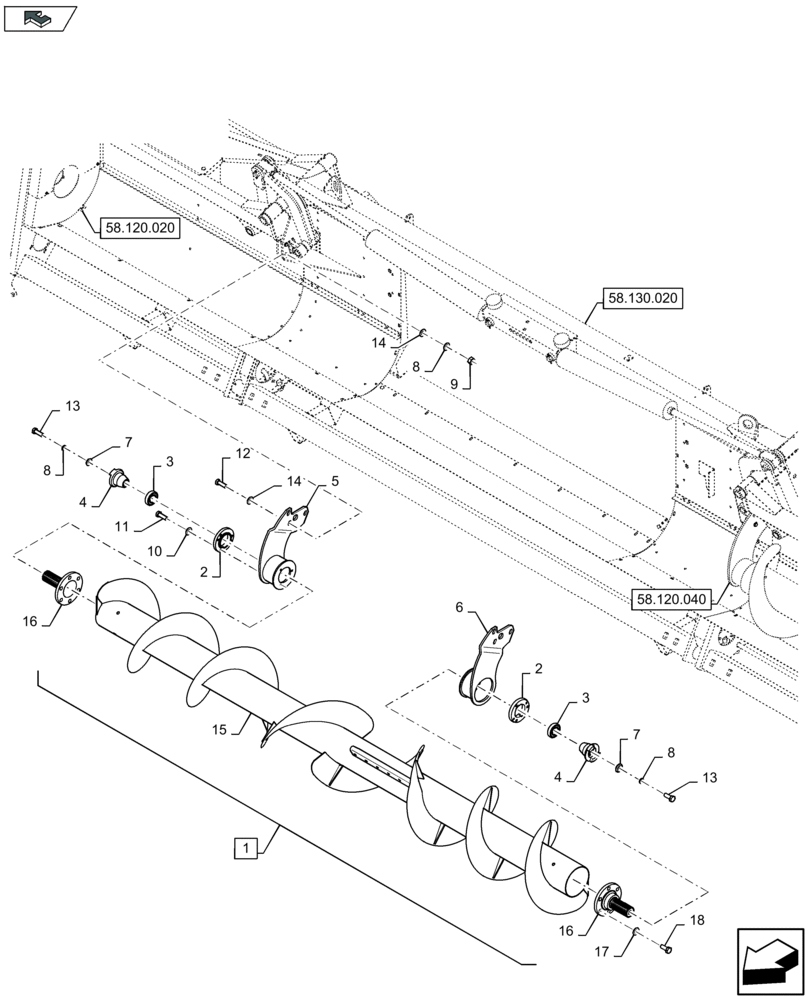

Запчасти Case IH 2608XF (58.120.030) - FEEDER AUGER (58) - ATTACHMENTS/HEADERS

1

84976568

AUGER

Incl 15 - 18

1шт.

2

321139050

SUPPORT

2шт.

3

340411238

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

4

84976905

HUB

2шт.

5

84976197

SUPPORT

1шт.

6

84976199

SUPPORT

1шт.

7

322592250

WASHER

2шт.

8

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

9

9706685

NUT,M12 x 1.75, Cl 8

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

12

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

,, Serial Range: -C585

6шт.

12

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

,, Start Serial: D586

6шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

14

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

,, Serial Range: -C585

1шт.

15

84976195

AUGER

1шт.

16

322529450

SHAFT

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.
