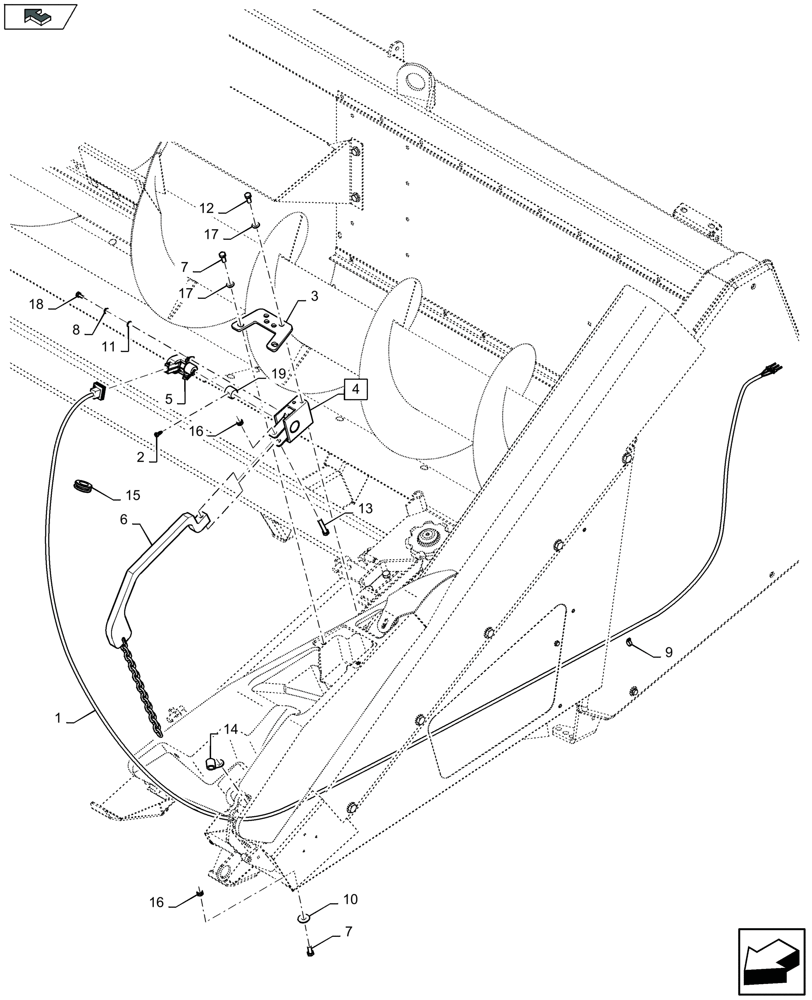

Запчасти Case IH 2608XF (55.662.010) - AUTOFLOAT SENSORS, LH & RH (55) - ELECTRICAL SYSTEMS

1

87547176

WIRE HARNESS

1шт.

2

281048

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 3/8"

2шт.

3

84453247

PLATE

2шт.

4

84527781

SENSOR

Incl 2, 5, 8, 11, 18, 19

2шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

4

84527782

SENSOR

Incl 2, 5, 8, 11, 18, 19

2шт.

FOR MIDRANGE COMBINES ONLY

1шт.

5

86616339

SENSOR,CCW

2шт.

6

87389599

ROD

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

8

140024

LOCK WASHER,M4

4шт.

9

368582

STRAP

20шт.

10

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

2шт.

11

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

431352

CLAMP,12mm ID, 8.5mm Bolt Hole, P Type

,, Serial Range: -C585

2шт.

14

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

,, Start Serial: D586

2шт.

15

86502508

PAD

6шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

18

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

4шт.

18

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

4шт.

19

84487524

INSERT

2шт.
