(35.603.055) - DECK/STRIPPER PLATES CONTROL, HYDRAULIC VALVE FOR MIDRANGE COMBINES ONLY

Запчасти Case IH 2608XF (35.603.055) - DECK/STRIPPER PLATES CONTROL, HYDRAULIC VALVE FOR MIDRANGE COMBINES ONLY (35) - HYDRAULIC SYSTEMS

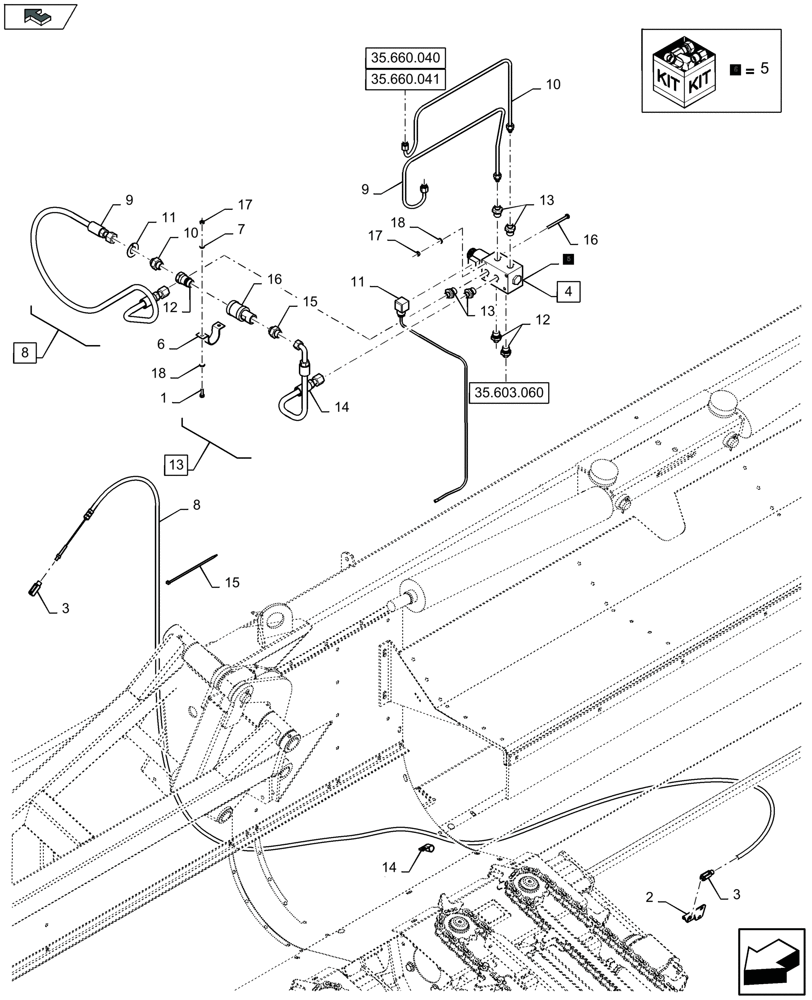

Схема запчастей Case IH 2608XF - (35.603.055) - DECK/STRIPPER PLATES CONTROL, HYDRAULIC VALVE FOR MIDRANGE COMBINES ONLY (35) - HYDRAULIC SYSTEMS
17
12
15
9
12
1
14
6
14
35.603.060
7
35.660.040
10
13
5
18
17
35.660.041
2
13
3
4
16
9
11
16
8
8
home
3
15
5
18
13
11
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

2

84245559

HOLDER

1шт.

3

322014450

YOKE,M6

2шт.

4

87326343

HYDRAULIC VALVE

Incl 5

1шт.

5

87328198

SOLENOID VALVE

1шт.

6

86615568

CLAMP

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

87601170

FLEXIBLE HOSE

Incl 9 - 12

1шт.

9

87601171

FLEXIBLE HOSE,6.35mm ID x 1370mm L, SAE 100R1

1шт.

10

86615560

HYD CONNECTOR

1шт.

11

86615559

WASHER,18mm ID x 40mm OD x 1.6mm Thk

1шт.

12

86615558

QUICK MALE COUPLING

1шт.

13

87601168

FLEXIBLE HOSE

Incl 14 - 16

1шт.

14

87601169

FLEXIBLE HOSE

1шт.

15

86615561

COUPLING

1шт.

16

86615560

HYD CONNECTOR

1шт.

17

9706755

NUT,M6, Cl 8

6шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.
