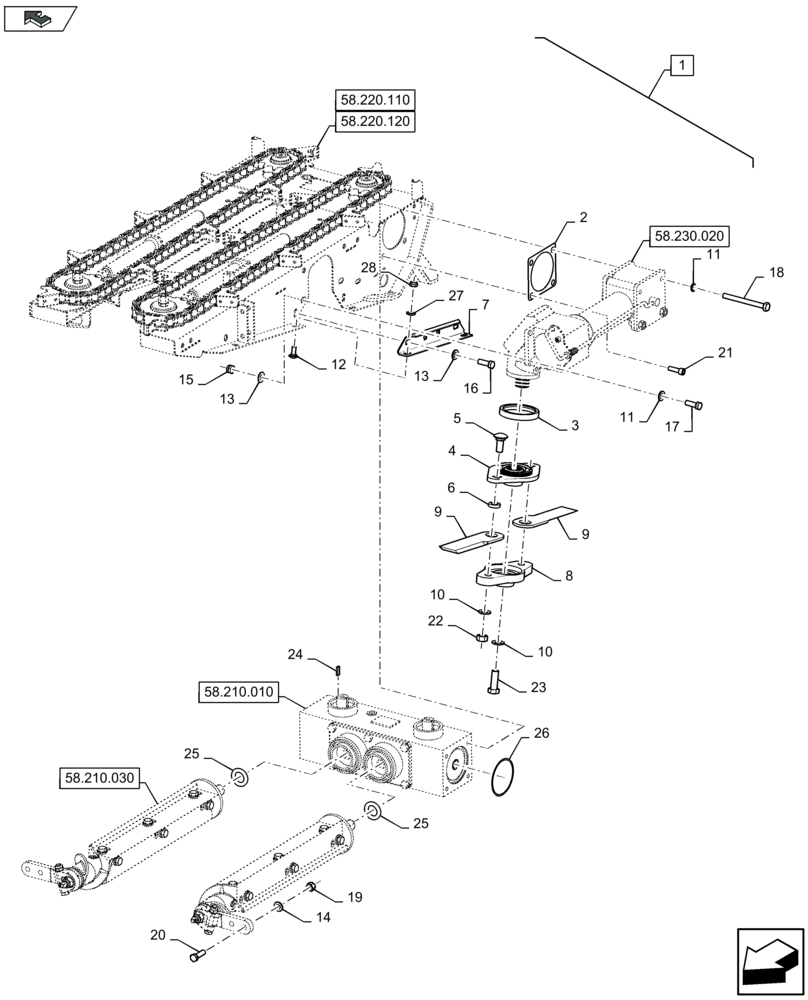

Запчасти Case IH 2606XR (58.230.010) - STALK CHOPPER - C599 (58) - ATTACHMENTS/HEADERS

1

84977681

ROW UNIT

Incl 2 - 28

1шт.

2

84977694

SHIM

1шт.

3

84977049

RING,85mm ID x 101.6mm OD x 14.5mm Thk

1шт.

4

84977178

HUB

1шт.

5

84972753

BOLT,M16 x 1.5 x 40mm, Cl 8.8

2шт.

6

322630350

WASHER,16.2mm ID x 30mm OD x 7mm L

2шт.

7

322630050

BRACKET

1шт.

8

322630250

FLANGE

1шт.

9

84976065

KNIFE

,, Serial Range: -C599

2шт.

9

84340041

KNIFE

,, Start Serial: D600

2шт.

10

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

3шт.

11

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

12

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

13

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

,, Serial Range: -C567

4шт.

13

355501330

WASHER

,, Start Serial: D568

4шт.

14

84000016

WASHER,12.5mm ID x 30mm OD x 5mm Thk

10шт.

15

100038

NUT,M12 x 1.75, Cl 8

2шт.

16

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

17

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

,, Serial Range: -C567

3шт.

17

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

,, Start Serial: D568

3шт.

18

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

19

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

20

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

2шт.

21

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

22

12164111

NUT,M16, Cl 8

2шт.

23

15840521

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

24

322743050

KEY

4шт.

25

322593550

SEAL

2шт.

26

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

,, Serial Range: -C599

1шт.

26

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

,, Start Serial: D600

1шт.

27

355501130

WASHER

4шт.

28

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.
