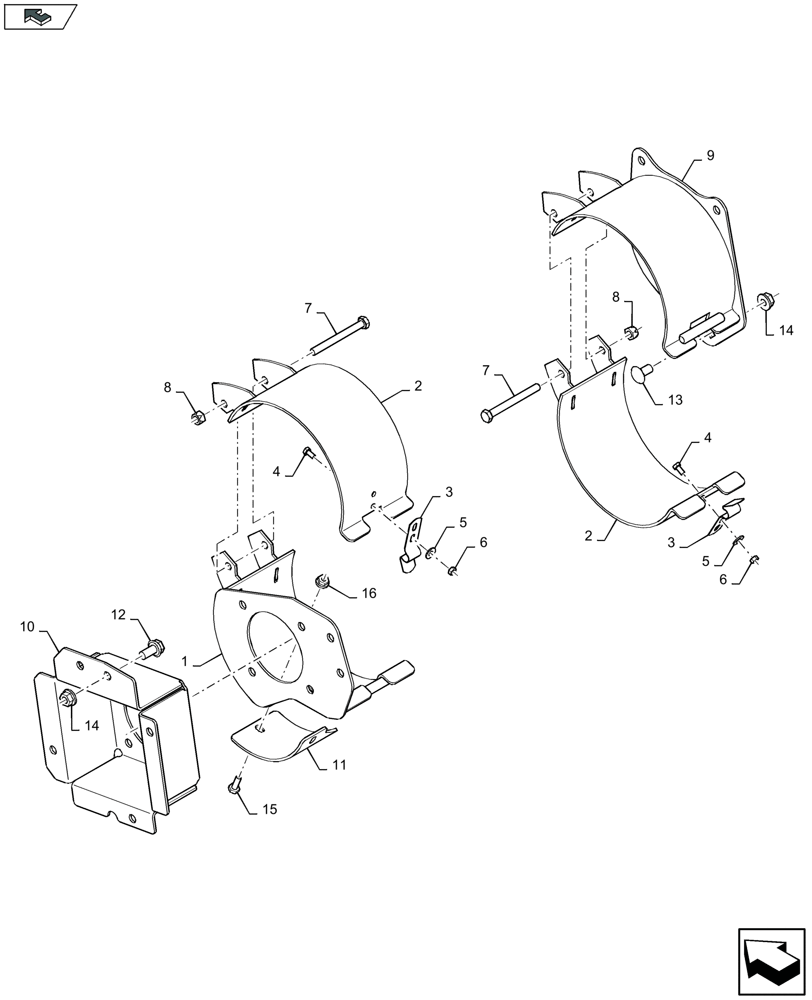

Запчасти Case IH 2606XR (58.224.410) - PTO SHIELD KIT FOR MIDRANGE COMBINES (58) - ATTACHMENTS/HEADERS

1

87637370

SHIELD

LH

1шт.

2

87637429

COVER

2шт.

3

9801069

LATCH

2шт.

4

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

6

86508813

NUT,M5, Cl 8

4шт.

7

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

9

87637371

SHIELD

RH

1шт.

10

87638860

SUPPORT

1шт.

11

87641163

PLATE

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

11шт.

13

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

14

247780

SERRATED NUT,Flg, USR, 3/8"-16

13шт.

15

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

16

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
