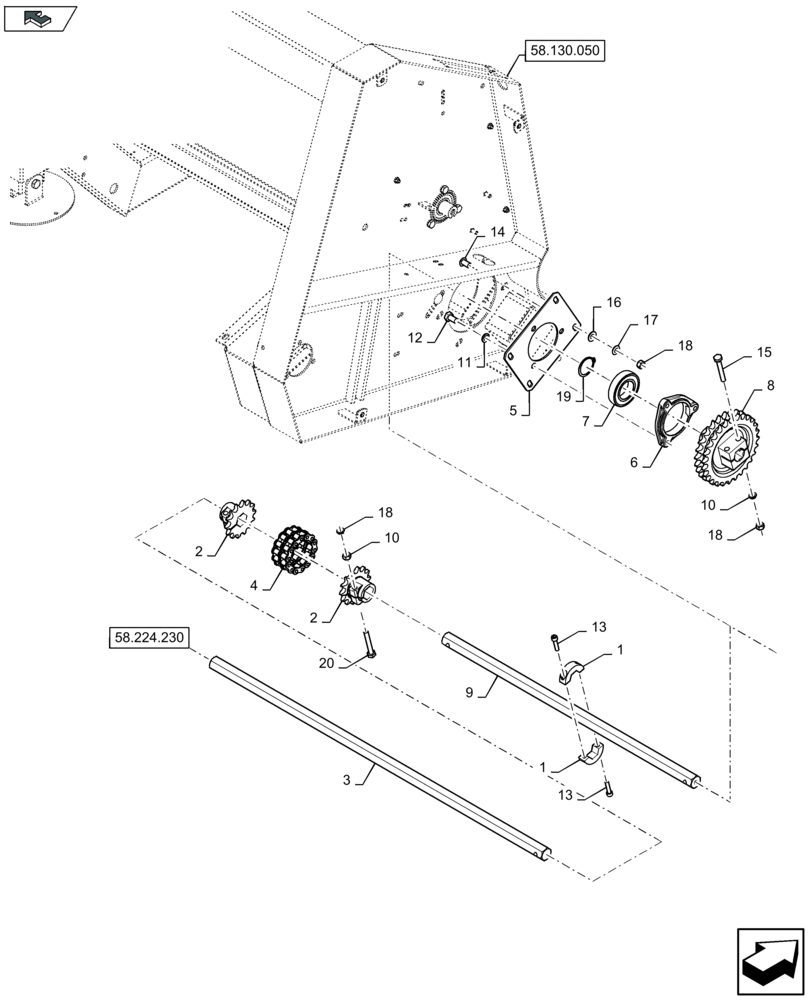

Запчасти Case IH 2606XR (58.224.240) - ROW UNIT DRIVES, RH (58) - ATTACHMENTS/HEADERS

1

84977051

HALF-SHELL

1шт.

2

322570650

DRIVEN SPROCKET

2шт.

3

322522850

BAR

1шт.

4

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

1шт.

5

322653550

COVER PLATE

1шт.

6

300019980

SUPPORT

1шт.

7

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

8

322632450

DRIVEN SPROCKET

1шт.

9

322642250

DRIVE SHAFT

1шт.

10

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

11

12034771

LOCK WASHER

3шт.

12

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

13

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

1шт.

14

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

15

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

,, Serial Range: -C567

2шт.

15

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

,, Start Serial: D568

2шт.

16

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

412105

NUT,M10, Cl 8

,, Serial Range: -C567

1шт.

18

100016

NUT,M10 x 1.5, Cl 8

,, Start Serial: D568

1шт.

19

370007

SNAP RING,M45, Ext

1шт.

20

86977775

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

,, Serial Range: -C567

2шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

,, Start Serial: D568

2шт.
