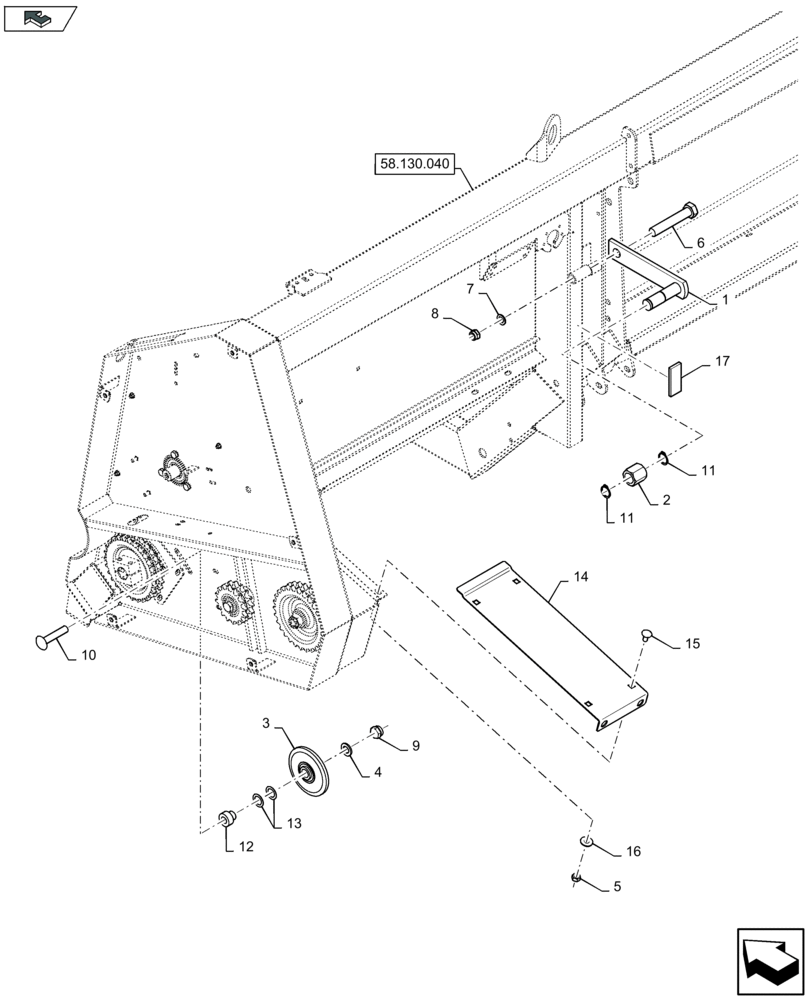

Запчасти Case IH 2606XR (58.224.010) - HEADER DRIVE, TENSIONER (58) - ATTACHMENTS/HEADERS

1

322651950

SUPPORT

1шт.

2

322651850

COUPLING

1шт.

3

84437219

DRIVEN SPROCKET,17T

1шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

412587

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8, Full Thd

1шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

8

86000441

NUT,M16 x 2.0, Cl 8

1шт.

9

87747101

BOLT

1шт.

10

87337888

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

11

370024

CIRCLIP,M20, Ext

2шт.

12

87526087

BUSHING

1шт.

13

87526090

SHIM,25mm ID x 165mm OD x 0.5mm Thk

2шт.

14

87635439

COVER

1шт.

15

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

16

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

17

84972786

FLEXIBLE SHEATH

1шт.
