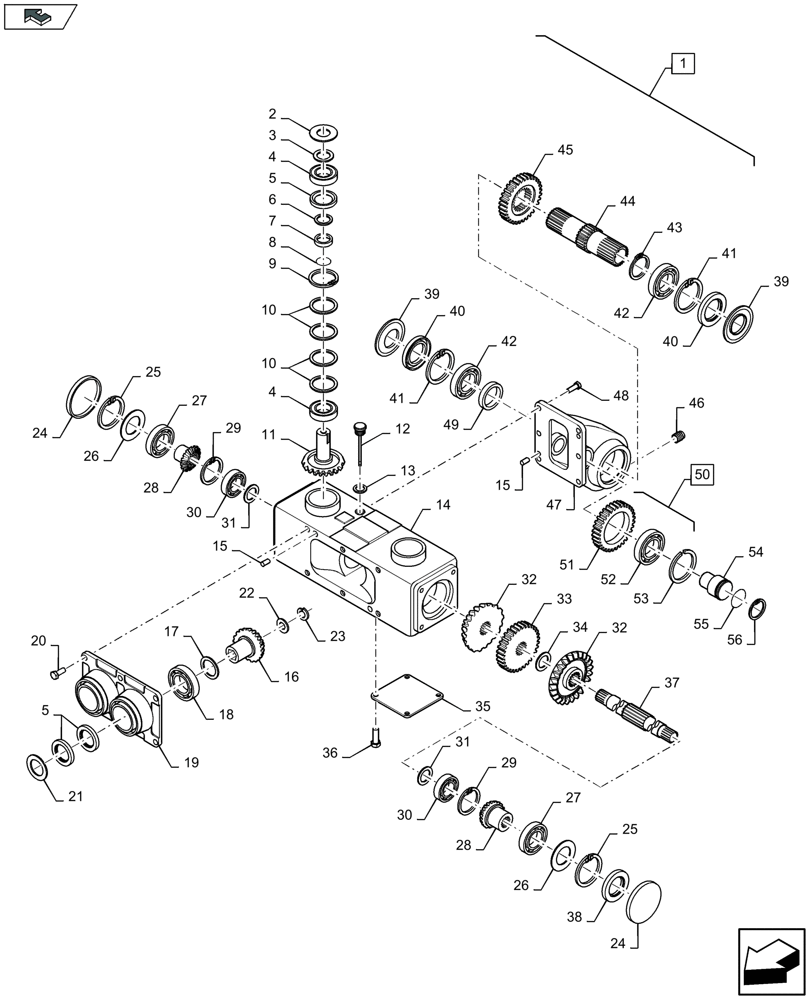

Запчасти Case IH 2606XR (58.210.010) - ROLLER AND CHAIN DRIVE - C599 (58) - ATTACHMENTS/HEADERS

1

322592600

GEARBOX

Incl 2 - 57

1шт.

1

322592600R

REMAN-GEARBOX

2608XF (11/06), 2606XR, 2608XR, 2612XR, All (11/06)

1шт.

1

322592600C

CORE-GEARBOX

Return Number

1шт.

1

84530982R

REMAN-GEARBOX

2606XR, 2608XF, 2608XR, 2612XR, All COMBINE CORN HEADER (11/06-), Reman for New PN 322592600

1шт.

1

84530982C

CORE-GEARBOX

Return Number

1шт.

2

322496050

WASHER

2шт.

3

322495850

ADJUSTING PLATE

2шт.

4

28042330

BALL BEARING,30mm ID x 62mm OD x 20mm W

THK. 20 MM

4шт.

5

322578450

OIL SCRAPER RING

6шт.

6

322577550

ADJUSTING PLATE

2шт.

7

322495750

BUSHING

2шт.

8

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

9

11061076

SNAP RING,M62, Int

,, Serial Range: -C585

2шт.

9

370012

RING,M62, Internal

,, Start Serial: D586

2шт.

10

322495600

SET OF RINGS

2шт.

11

322495950

GEAR

2шт.

12

322644550

INDICATOR

1шт.

13

322498950

SEALING WASHER,22mm ID x 28mm OD x 1.5mm Thk

,, Serial Range: -C585

1шт.

13

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

,, Start Serial: D586

1шт.

14

322644350

HOUSING

1шт.

15

322498650

PIN

,, Serial Range: -C586

2шт.

15

10337410

DOWEL,M8 x 18

,, Start Serial: D586

4шт.

16

322644450

GEAR

2шт.

17

322493200

SET OF RINGS

2шт.

18

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

19

322644250

COVER

1шт.

20

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

,, Serial Range: -C585

6шт.

20

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Start Serial: D586

6шт.

21

322497950

WASHER

2шт.

22

322644650

PROTECTION CAP

2шт.

23

11059476

SNAP RING,M35, Int

,, Serial Range: -C585

2шт.

23

300642

CIRCLIP,M35 x 1.5mm W, Internal

,, Start Serial: D586

2шт.

24

322496850

DUST CAP

2шт.

25

11061676

SNAP RING,M75, Int

,, Serial Range: -C585

2шт.

25

382103

SNAP RING,M75, Internal

,, Start Serial: D586

2шт.

26

322496200

SET OF RINGS

2шт.

27

28042490

BALL BEARING

2шт.

28

322496150

GEAR

2шт.

29

11061076

SNAP RING,M62, Int

,, Serial Range: -C585

2шт.

29

370012

RING,M62, Internal

,, Start Serial: D586

2шт.

30

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

2шт.

31

322497850

ADJUSTING PLATE

2шт.

32

322497050

GEAR

2шт.

33

322497750

GEAR

1шт.

34

322493800

SET OF RINGS

1шт.

35

322494150

COVER

2шт.

36

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

37

322496950

SHAFT

1шт.

38

353583184

OIL SEAL

1шт.

39

322497350

PROTECTION CAP

2шт.

40

322498850

OIL SCRAPER RING

2шт.

41

11061976

SNAP RING,M80, Int

,, Serial Range: -C585

2шт.

41

300633

SNAP RING,M80, Internal

,, Start Serial: D586

2шт.

42

86516079

BALL BEARING,50mm ID x 80mm OD x 16mm W

2шт.

43

11069576

SNAP RING,M55, Ext

,, Serial Range: -C585

1шт.

43

327911

CIRCLIP,55mm ID

,, Start Serial: D586

1шт.

44

322497250

SHAFT

1шт.

45

322497550

GEAR

1шт.

46

322496550

PLUG

1шт.

47

322644150

HOUSING

,, Serial Range: -C585

1шт.

47

84297800

HOUSING

,, Start Serial: D586

1шт.

48

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

6шт.

49

322497450

SHIM

1шт.

50

322585500

GEAR

Incl 51 - 53, Serial Range: -C585

1шт.

50

84390159

GEAR

Incl 51 - 53, Start Serial: D586

1шт.

51

322497650

GEAR

1шт.

52

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

,, Serial Range: -C585

1шт.

52

84355790

BALL BEARING

,, Start Serial: D586

1шт.

53

322498550

RING

,, Serial Range: -C585

1шт.

53

84390160

RING

,, Start Serial: D586

1шт.

54

322497150

PIN

1шт.

55

14458980

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

,, Serial Range: -C585

1шт.

55

511212

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

,, Start Serial: D586

1шт.

56

11060276

SNAP RING,M47, Int

,, Serial Range: -C585

1шт.

56

300647

SNAP RING,M47, Int

,, Start Serial: D586

1шт.
