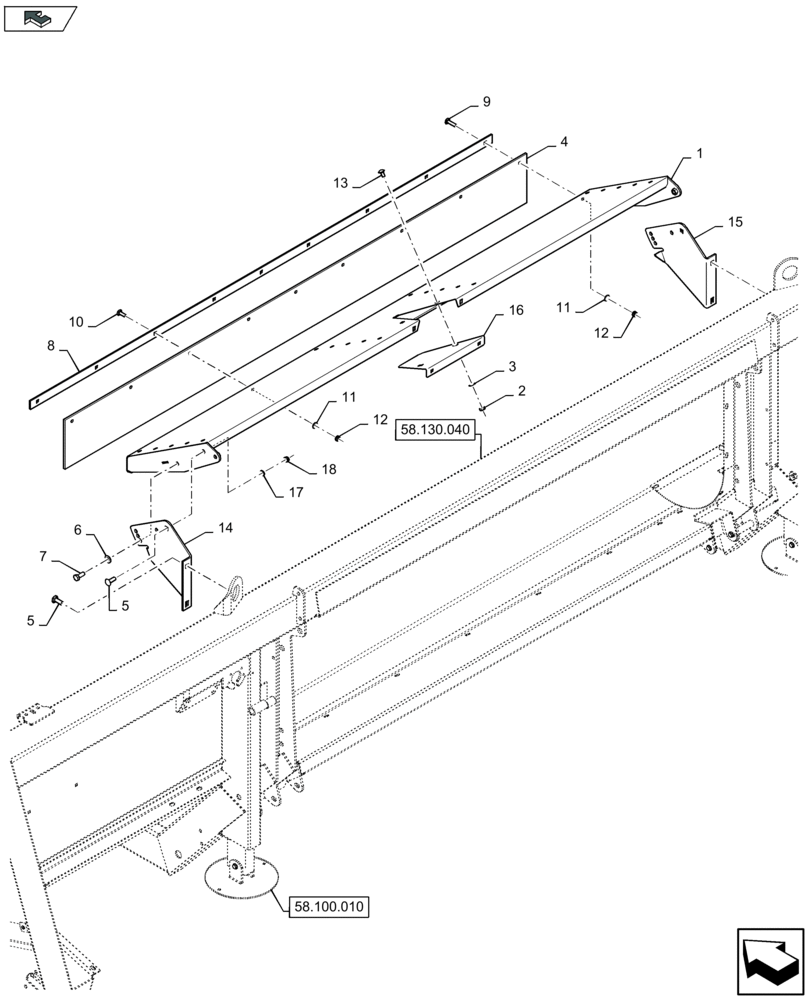

Запчасти Case IH 2606XR (58.208.010) - AUGER PROTECTION (58) - ATTACHMENTS/HEADERS

1

87725842

SHIELD

1шт.

2

9706690

NUT,M8 x 1.25, Cl 8

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

4

87727490

CANVAS

1шт.

5

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

87723600

SLAT

1шт.

9

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.

10

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

5шт.

11

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

9шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.

13

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

14

87720530

SUPPORT

1шт.

15

87725844

SUPPORT

1шт.

16

87721184

PLATE

1шт.

17

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
