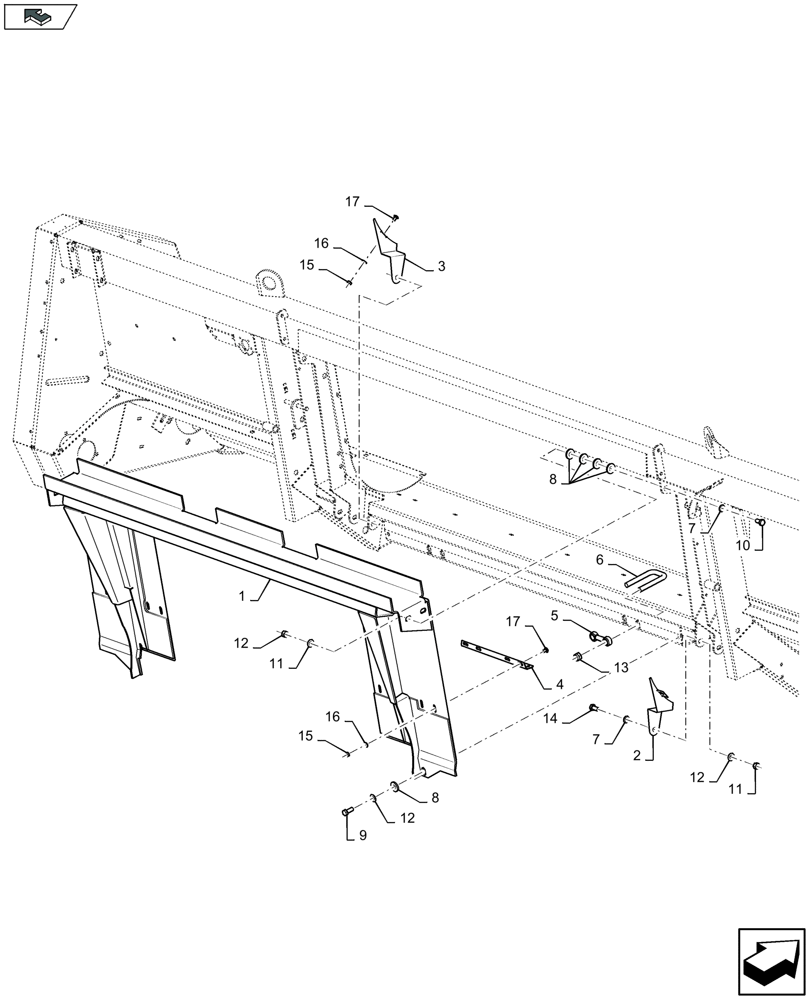

Запчасти Case IH 2606XR (58.130.320) - FRAME FOR MIDRANGE COMBINES (58) - ATTACHMENTS/HEADERS

1

87589714

ADAPTER

1шт.

2

84977526

PLATE

1шт.

3

84977524

PLATE

1шт.

4

84454948

ANGLE

2шт.

5

86619254

PLATE,100mm L

2шт.

6

84455625

U-BOLT

2шт.

7

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

8

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

10

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

11

9706685

NUT,M12 x 1.75, Cl 8

4шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

13

86000441

NUT,M16 x 2.0, Cl 8

4шт.

14

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

10шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

17

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

10шт.
