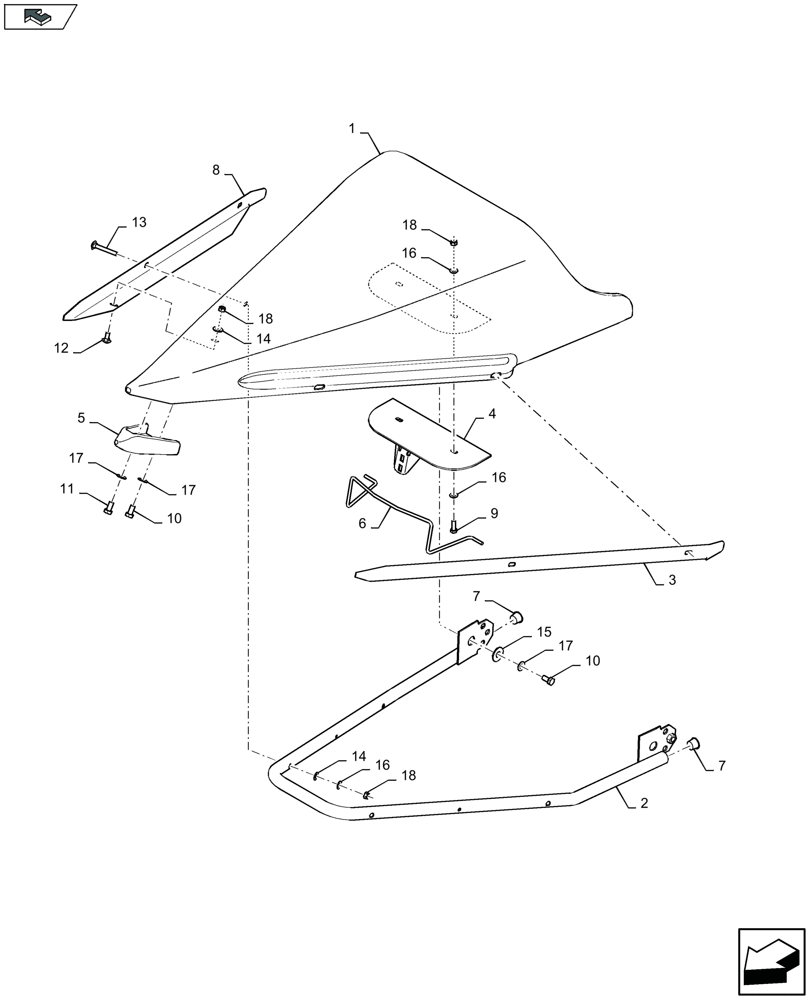

Запчасти Case IH 2606XR (58.130.170) - INNER DIVIDER (58) - ATTACHMENTS/HEADERS

1

86980207

DIVIDER

1шт.

2

87362248

TUBE,898.6 mm L

1шт.

3

86553709

WEAR STRIP

1шт.

4

87020036

PLATE

1шт.

FOR HEADER HEIGHT CONTROL ONLY

1шт.

4

86583860

PLATE

1шт.

5

87015179

POINT

1шт.

6

86535508

PROP

1шт.

7

86583879

PLUG

2шт.

8

86553710

WEAR STRIP

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

13

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

4шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.
