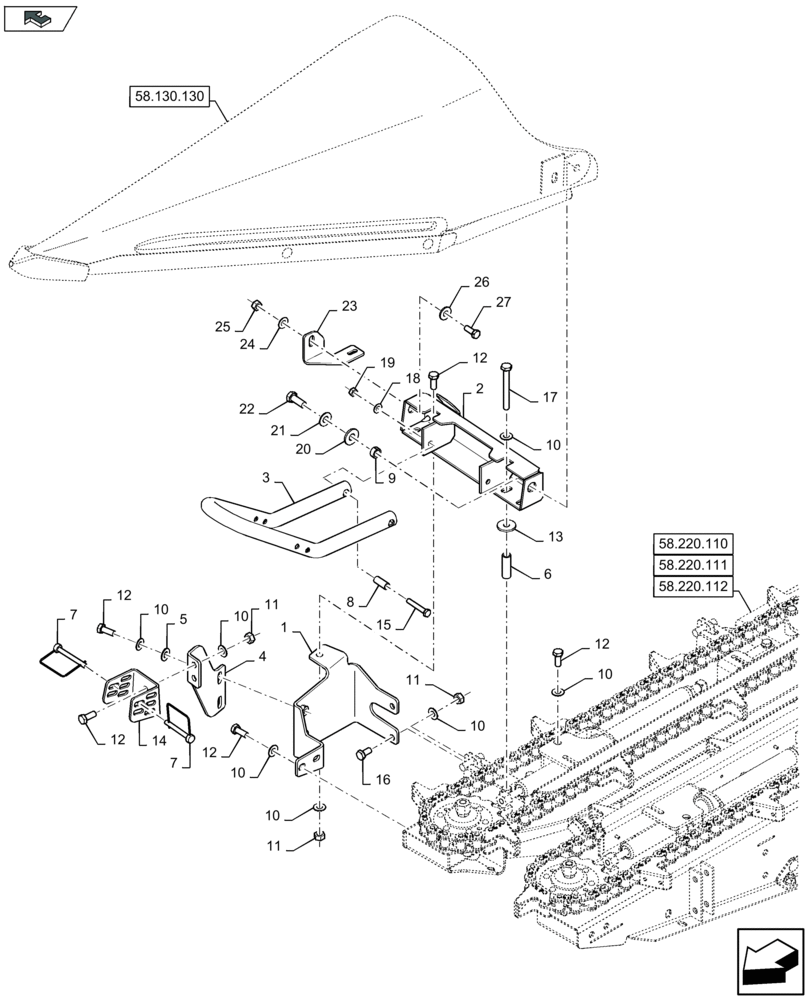

Запчасти Case IH 2606XR (58.130.110) - END DIVIDER MOUNT, RH - D586 (58) - ATTACHMENTS/HEADERS

1

84204425

BRACKET

1шт.

2

84388605

MOUNT

1шт.

3

84388674

TUBE

1шт.

4

84204412

BRACKET

1шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

84150942

TUBE SPACER

1шт.

7

647695

PIN,7.94mm OD

2шт.

8

86551559

SPACER

2шт.

9

131522

SPACER

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

11

100016

NUT,M10 x 1.5, Cl 8

5шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

14

84388672

BRACKET

1шт.

15

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

17

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

9706690

NUT,M8 x 1.25, Cl 8

2шт.

20

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

2шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

23

84300761

BRACKET, SUPPORTING

1шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.
