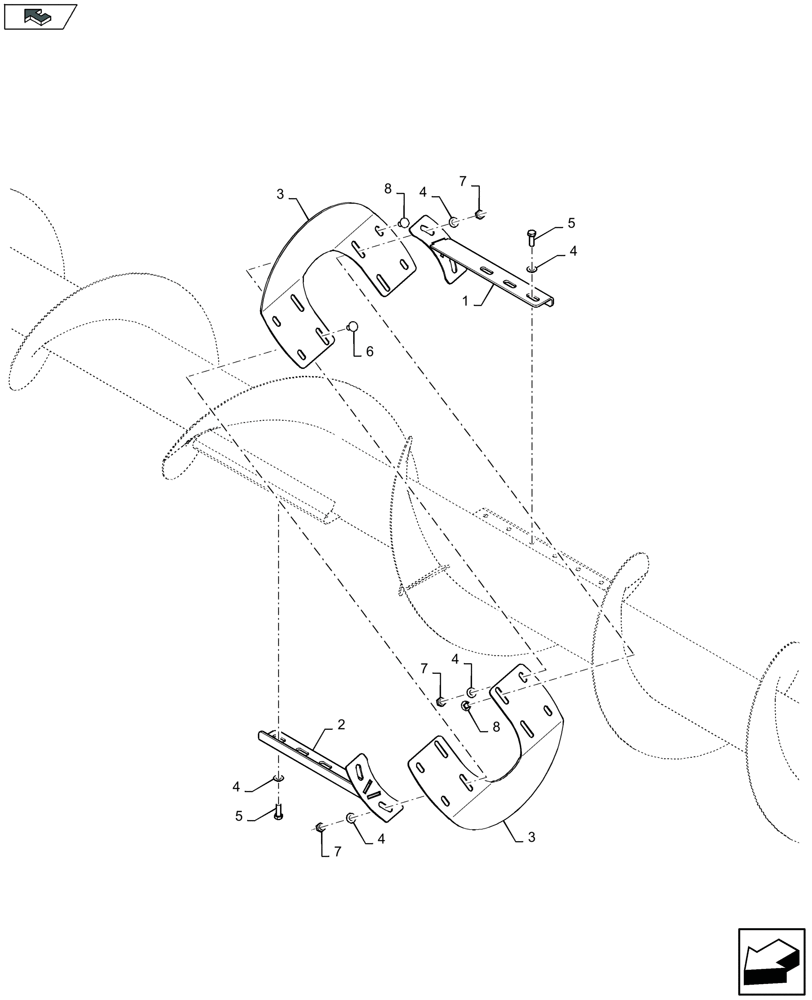

Запчасти Case IH 2606XR (58.120.120) - CENTRAL AUGER DISC (58) - ATTACHMENTS/HEADERS

1

84361590

SUPPORT

1шт.

2

84361592

SUPPORT

1шт.

3

84485727

DISC

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

6

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

7

100016

NUT,M10 x 1.5, Cl 8

8шт.

8

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.
