Запчасти Case IH 2606XR (55.100.010) - MAIN CABLE HARNESS (55) - ELECTRICAL SYSTEMS

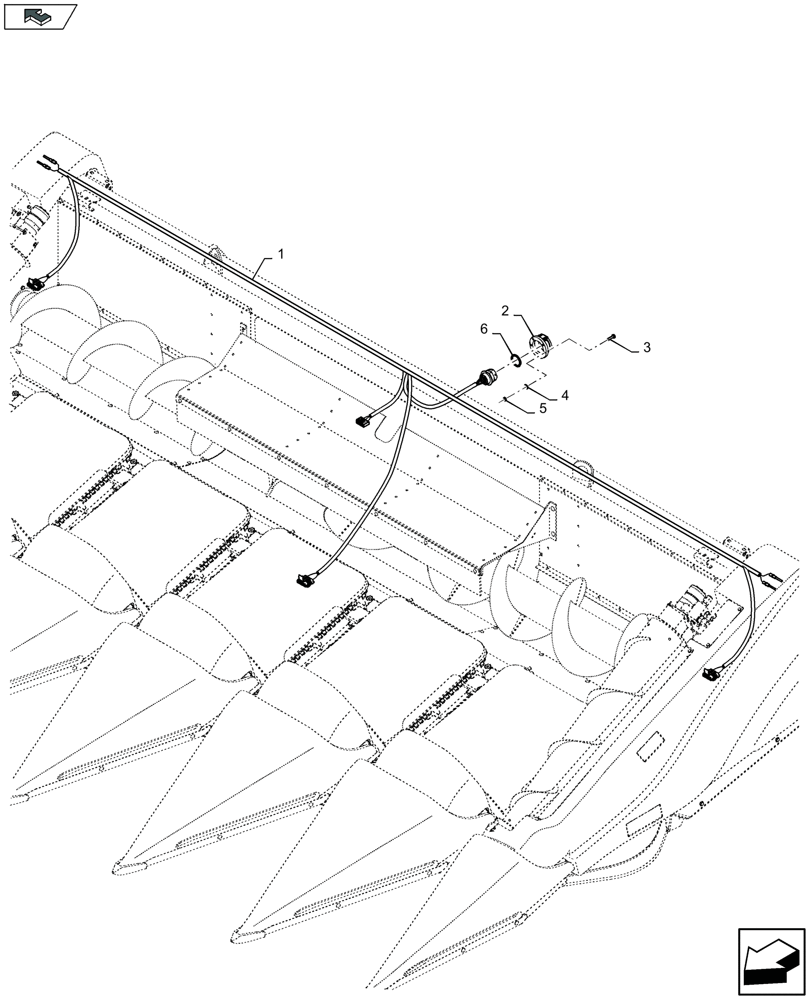

Схема запчастей Case IH 2606XR - (55.100.010) - MAIN CABLE HARNESS (55) - ELECTRICAL SYSTEMS
1
6
4
3
home
5
2

Артикул

Название

Примечание

Количество

1

87599196

WIRE HARNESS

1шт.

FOR 2606XR ONLY

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

1

87599197

WIRE HARNESS

1шт.

FOR 2606XR ONLY

1шт.

FOR MIDRANGE COMBINES ONLY

1шт.

1

86978861

WIRE HARNESS

1шт.

FOR 2608XR ONLY

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

1

86980632

WIRE HARNESS

1шт.

FOR 2608XR ONLY

1шт.

FOR MIDRANGE COMBINES ONLY

1шт.

1

86978862

WIRE HARNESS

1шт.

FOR 2612XR ONLY

1шт.

1

87599194

WIRE HARNESS

1шт.

FOR 2608XF ONLY

1шт.

FOR FLAGSHIP COMBINES ONLY

1шт.

1

87599195

WIRE HARNESS

1шт.

FOR 2608XF ONLY

1шт.

FOR MIDRANGE COMBINES ONLY

1шт.

2

86606228

COVER

1шт.

3

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

4

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

5

86508813

NUT,M5, Cl 8

4шт.

6

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

Выбрано товаров: 25
