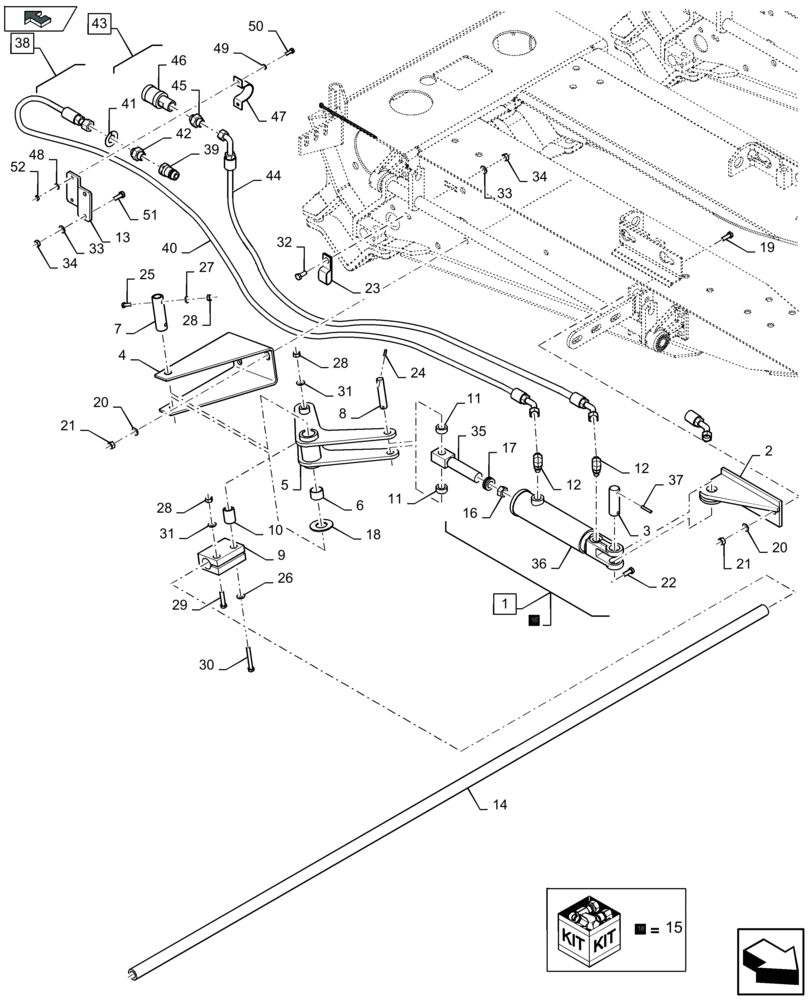

Запчасти Case IH 2606XR (35.603.015) - DECK/STRIPPER PLATES CONTROL, FOR MIDRANGE COMBINES ONLY (35) - HYDRAULIC SYSTEMS

1

87029738

HYDRAULIC CYLINDER,19.05mm Rod, 101.6mm Stroke

Incl 15 - 17, 35, 36

1шт.

2

87573506

SUPPORT

1шт.

3

86596042

PIN,19.05mm OD x 57.2mm L

1шт.

4

322631050

BRACKET

1шт.

5

322424950

LEVER

1шт.

6

322426050

BUSHING

2шт.

7

322424550

SPACER

1шт.

8

322424750

PIN

1шт.

9

84271820

HOLDER

1шт.

10

322424850

BUSHING

1шт.

11

87573510

BUSHING

2шт.

12

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

2шт.

13

87573555

SUPPORT

1шт.

14

322574850

ROD

1шт.

15

87029768

SEAL KIT

1шт.

16

9802182

LOCK NUT,1/2"-20, GB

1шт.

17

87030036

ROD

1шт.

18

355502120

WASHER

1шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

100016

NUT,M10 x 1.5, Cl 8

4шт.

22

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

23

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

24

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

25

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

1шт.

26

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

1шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

28

9706685

NUT,M12 x 1.75, Cl 8

3шт.

29

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

30

86512143

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 12.9, Full Thd

1шт.

31

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

34

9706690

NUT,M8 x 1.25, Cl 8

3шт.

35

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1шт.

36

87029765

CYLINDER END CAP

1шт.

37

412686

COTTER PIN,M5 x 32

2шт.

38

86613971

HOSE,6.35mm ID x 2440mm L

Incl 39 - 42

1шт.

39

86615558

QUICK MALE COUPLING

1шт.

40

86613973

HOSE

1шт.

41

86615559

WASHER,18mm ID x 40mm OD x 1.6mm Thk

1шт.

42

86615560

HYD CONNECTOR

1шт.

43

86613972

HYDRAULIC HOSE,6.35mm ID x 1830mm L

Incl 44 - 46

1шт.

44

86613974

HOSE

1шт.

45

86615560

HYD CONNECTOR

1шт.

46

86615561

COUPLING

1шт.

47

86615568

CLAMP

1шт.

48

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

49

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

50

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

51

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

52

9706755

NUT,M6, Cl 8

2шт.
