Запчасти Case IH 2412-30 (20.03.01) - MAIN DRIVE, 6, 8 & 12 ROW (58) - ATTACHMENTS/HEADERS

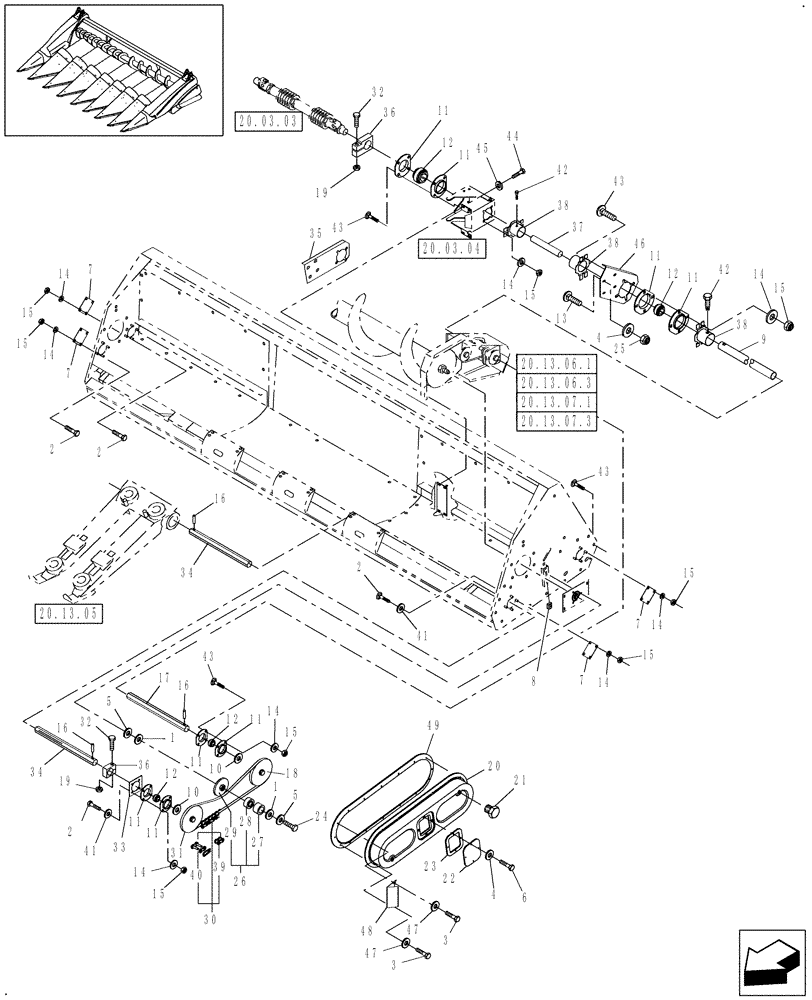

Схема запчастей Case IH 2412-30 - (20.03.01) - MAIN DRIVE, 6, 8 & 12 ROW (58) - ATTACHMENTS/HEADERS
34
38
10
4
26
43
37
14
11
18
15
2
2
48
14
43
28
1
16
7
14
14
46
14
4
6
23
11
22
36
45
40
5
11
41
11
47
27
43
42
29
47
31
20.13.05
20.03.03
20.03.04
20.13.07.3
20.13.07.1
20.13.06.3
20.13.06.1
49
33
15
16
32
15
15
12
1
11
41
14
7
7
35
42
14
15
36
12
3
12
34
24
15
20
8
43
30
11
11
11
44
3
7
10
2
12
17
39
5
16
38
2
15
32
38
21
13
15
14
19
19
25
9

Артикул

Название

Примечание

Количество

1

86900752

WASHER

1ARшт.

2

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

5

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

4шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

7

86614640

COVER

4шт.

8

86619024

BLOCK

Main Drive

1шт.

9

87106358

SHIELD

12 Row-30"

2шт.

9

87347482

SHIELD

12 Row-22"

2шт.

9

87281253

SHIELD

8 Row-36" & 38", RH

1шт.

9

87347631

SHIELD

8 Row-36" & 38", LH

1шт.

10

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

2 ARшт.

11

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

1шт.

12

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

6 & 12 Row

1шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

15

9706685

NUT,M12 x 1.75, Cl 8

1шт.

16

88182

COTTER PIN,1/4" OD x 2" L

3шт.

17

87029331

PRIMARY SHAFT

6 Row-30" & 70CM, 8 Row-22"

1шт.

17

87029339

PRIMARY SHAFT

12 Row-30"

2шт.

17

87029277

PRIMARY SHAFT

8 Row-30", 12 Row-20"

2шт.

17

87029333

PRIMARY SHAFT

6 Row-36" & 38", 8 Row-70CM

1шт.

17

87029337

PRIMARY SHAFT

12 Row-22"

2шт.

17

87029335

PRIMARY SHAFT

8 Row-36" & 38"

2шт.

18

86524051

DRIVING SPROCKET

28T, 6 & 12 Row

1шт.

18

86524052

DRIVING SPROCKET

34T, 8 Row

2шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

20

86620907

SHIELD

Plastic, Chain, See Figure Note

1шт.

21

214389

PLUG,3/4" - 16 ORB

2шт.

22

86524309

COVER

1шт.

23

86551857

GASKET,6.35mm Thk

1шт.

24

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

25

9706690

NUT,M8 x 1.25, Cl 8

8шт.

26

86619245

SPROCKET ASSY.,15T

15T, 6 & 12 Row

1шт.

26

86619126

SPROCKET ASSY.,15T

15T IDLER, 8 Row [Integral bearing & bushing]

2шт.

27

86619173

SPACER

6 & 12 Row

1шт.

28

45396

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

6 & 12 Row

1шт.

29

768197

SPROCKET ASSY.

15T, RC 80, 6 & 12 Row

1шт.

30

87000840

CHAIN

#80, 76" [W/spring clip], 6 & 12 Row

1шт.

30

87000841

BOLT

#60, 73.5" [W/spring clip], 8 Row

2шт.

31

87024803

DRIVING SPROCKET

25T

1шт.

31

87024802

DRIVING SPROCKET

30T, 8 Row Only

1шт.

32

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

33

87109883

PLATE

Bearing Support

1шт.

34

86524067

SHAFT

Row, LH, 6 Row-30" & 70CM, 12 Row-30"

1шт.

34

86524064

SHAFT

Row, RH, 12 Row-30"

1шт.

34

86543514

SHAFT

Row, LH, 8 Row-30" & 12 Row-20"

1шт.

34

86543515

SHAFT

Row, RH, 8 Row-30" & 12 Row-20"

1шт.

34

86563110

SHAFT

Row, LH, 8 Row-70CM

1шт.

34

86563185

SHAFT

Row, RH, 8 Row-70CM

1шт.

34

86549162

SHAFT

Row, RH & LH, 8 Row-22"

2шт.

34

86563383

SHAFT

Row, LH, 6 Row-36" & 38"

1шт.

34

86548800

SHAFT

Row, LH, 12 Row-22"

1шт.

34

86548799

SHAFT

Row, RH, 12 Row-22"

1шт.

34

86532662

SHAFT

Row, LH, 8 Row-36" & 38"

1шт.

34

86532663

SHAFT

Row, RH, 8 Row-36" & 38"

1шт.

35

86978979

BRACKET

Driveline, 12 Row-30" Only

2шт.

36

86611827

CLAMP,32.08mm - 35.16mm

4шт.

37

87281881

SHIELD

8 Row-38" LH

1шт.

37

87282353

SHIELD

8 Row-22" RH

1шт.

37

87106360

SHIELD

6 Row-30", 6 Row-70CM & 8 Row-22" LH

1шт.

37

87106358

SHIELD

8 Row-30" & 12 Row-20", RH

1шт.

37

87106357

SHIELD

8 Row-30" & 12 Row-20", LH

1шт.

37

87281253

SHIELD

12 Row-22", 8 Row-36" & 38" RH

1шт.

37

87106359

SHIELD

12 Row-30" LH & RH

2шт.

37

87281883

SHIELD

Shield, 8 Row-70CM RH

1шт.

37

87365888

SHIELD

6 Row-36" & 38" LH Only

1шт.

37

87347637

SHIELD

8 Row-36" RH

1шт.

37

87347491

SHIELD

8 Row-70CM LH

1шт.

37

86633018

SHIELD

12 Row-22" LH

1шт.

38

86615925

BRACKET

6 Row-30", 36", 38", 70cm

1шт.

38

86615925

BRACKET

8 Row-22", 30", 70cm; 12 Row-20"

3шт.

38

86615925

BRACKET

8 Row-36" & 38"; 12 Row-22" & 30"

6шт.

39

86977428

CONNECTING LINK

#80 Offset, 6 & 12 Row

1шт.

40

288063

CONNECTING LINK

#80, 6 & 12 Row

1шт.

40

165590

CONNECTING LINK

#60, 8 Row

1шт.

41

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

12шт.

42

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

1шт.

43

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

24шт.

44

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

45

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

HT, 13 x 28 x 5

8шт.

46

86978979

BRACKET

8 Row 36" & 38", 12 Row 22" & 30"

2шт.

47

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

48

86544460

SHIELD

6 Row-36" & 70CM, 8 Row-36"

1шт.

49

87655408

SEAL

Neoprene Foam Gasket

1шт.

Выбрано товаров: 86
