Запчасти Case IH 2412-30 (20.18.13) - ROW GUIDANCE SENSORS, 30" (58) - ATTACHMENTS/HEADERS

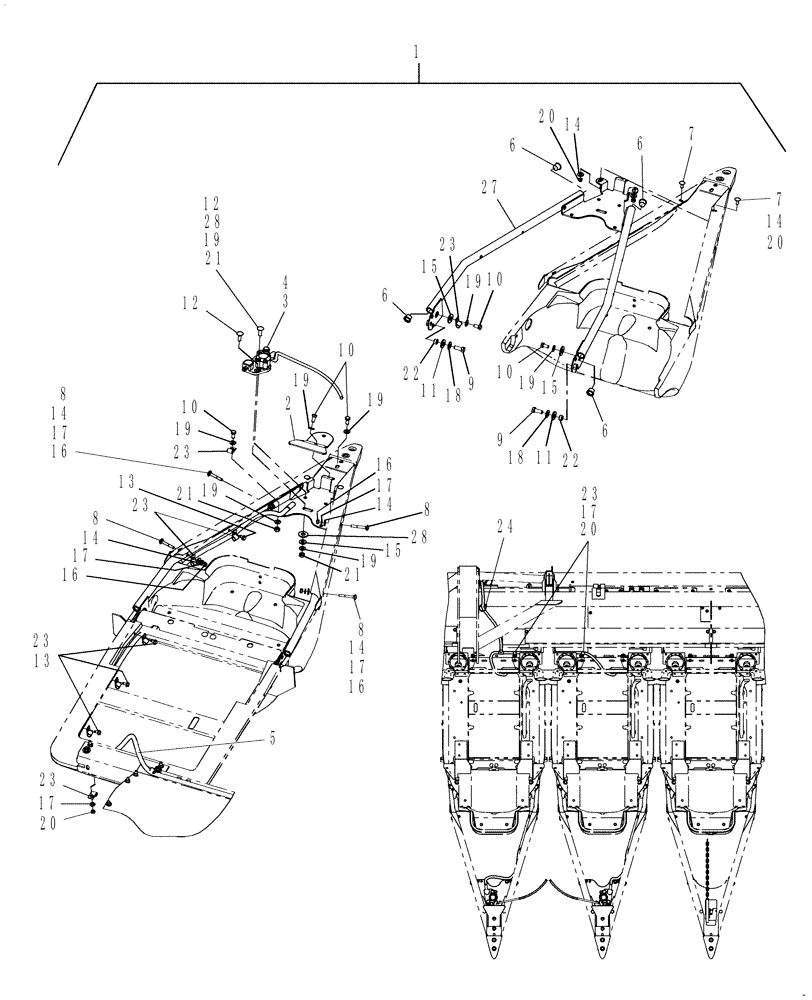

Схема запчастей Case IH 2412-30 - (20.18.13) - ROW GUIDANCE SENSORS, 30" (58) - ATTACHMENTS/HEADERS
11
6
7
18
20
19
23
19
22
6
19
3
9
13
21
14
17
7
19
18
17
1
16
6
11
2
15
13
6
20
17
23
20
24
17
5
10
14
14
22
15
21
23
10
8
14
23
9
8
12
21
12
23
10
16
16
23
16
28
10
19
19
14
27
15
8
4
14
19
8
28
17
20
19
17

Артикул

Название

Примечание

Количество

1

87496853

PACKAGE,SERVICE

Row Guidance. 30"

1шт.

2

87483053

PLATE

2шт.

3

87487708

SENSOR

LH Assy, Incl 3a, 3e

1шт.

3a

47563334

SENSOR

LH Digital

1шт.

3b

84283678

SENSOR

LH Arm

1шт.

3c

87476002

SLEEVE

Bushing

1шт.

3d

87476020

STEP BOLT

Vertical Pin That Arm Pivots On

1шт.

3e

393871

LOCK PIN,5mm OD x 30mm L, Slotted

Secure Arm In Place

1шт.

4

87487709

SENSOR

RH Assy, Incl 4a, 4e

1шт.

4a

47563336

SENSOR

RH Digital

1шт.

4b

84283679

SENSOR

RH Arm

1шт.

4c

87476002

SLEEVE

Bushing

1шт.

4d

87476020

STEP BOLT

Vertical Pin That Arm Pivots On

1шт.

4e

393871

LOCK PIN,5mm OD x 30mm L, Slotted

Secure Arm In Place

1шт.

5

84977099

WIRE HARNESS

1шт.

6

86583879

PLUG

8шт.

7

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

8

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

8шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

10шт.

11

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

1/4" ID x 17/32" OD x 0.134" Thick

4шт.

12

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

4шт.

13

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

8шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

12шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

20

9706690

NUT,M8 x 1.25, Cl 8

8шт.

21

100016

NUT,M10 x 1.5, Cl 8

6шт.

22

131522

SPACER

4шт.

23

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

18шт.

24

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

25

Not Used

1шт.

26

Not Used

1шт.

27

87483051

SUPPORT

Arm

2шт.

28

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

Выбрано товаров: 38
