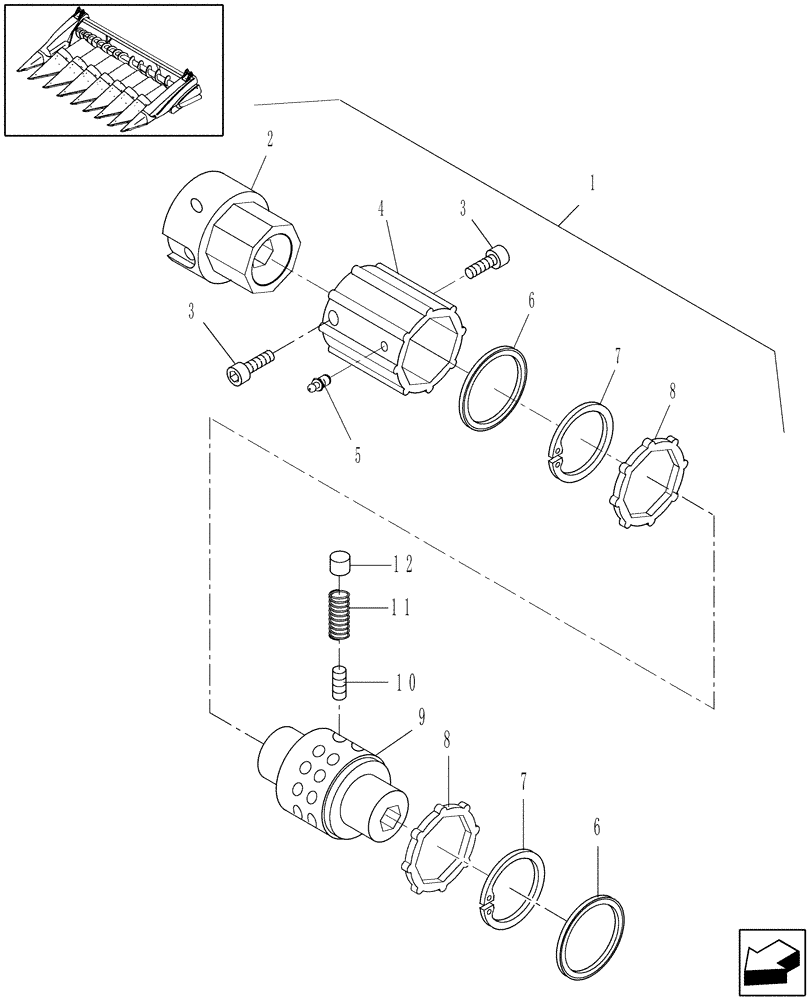

Запчасти Case IH 2412-30 (20.13.05B[1]) - RADIAL PIN SLIP CLUTCH SUBASSEMBLY, PRIOR TO CBJ038864 (58) - ATTACHMENTS/HEADERS

1

87025649

CLUTCH ASSEMBLY

1шт.

2

87020938

COUPLING FLANGE

Adapter

1шт.

3

87035372

CAPSCREW,M10 x 1.5 x 16mm

M10 x 1.5 x 16, CL 12.9

2шт.

4

87020939

RIGID TUBE

Housing

1шт.

5

84447449

LUBE NIPPLE,M8.2 x 1

2шт.

6

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

2шт.

7

300633

SNAP RING,M80, Internal

2шт.

8

418509

RING

Thrust

2шт.

9

87020940

HUB

1шт.

10

279346

SPRING

Inner

11шт.

11

386510

SPRING,Compression, 13mm OD X 13.2mm L

Outer

16шт.

12

275246

CAM

16шт.
