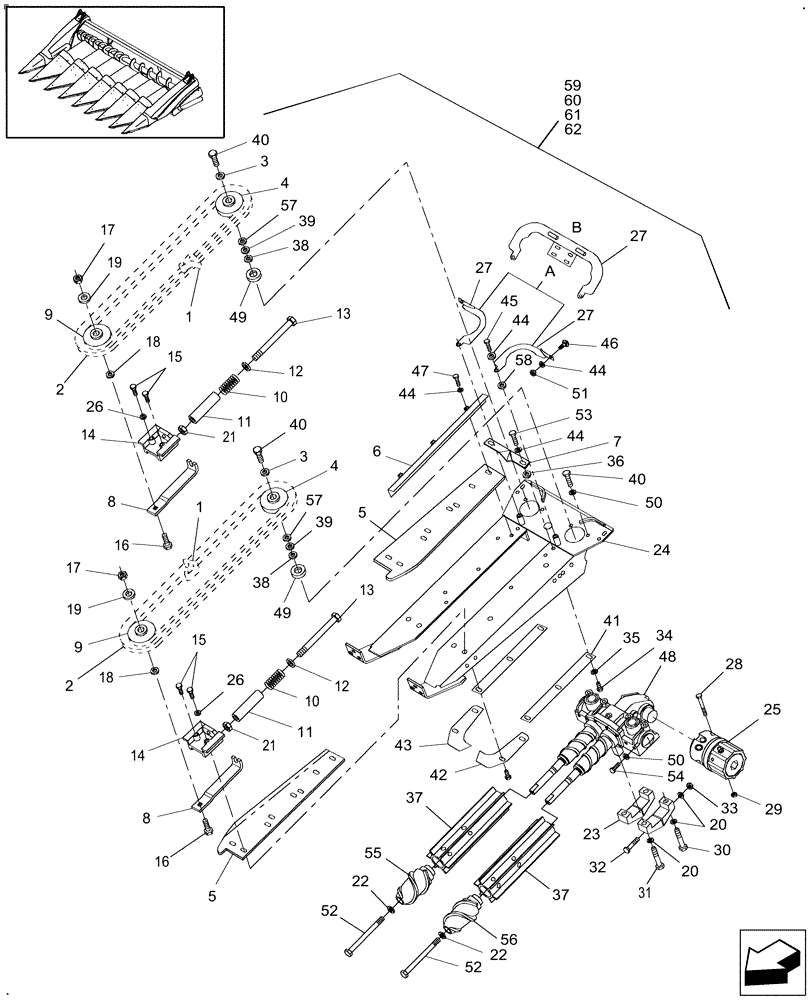

Запчасти Case IH 2412-30 (20.13.05) - ROW UNIT (58) - ATTACHMENTS/HEADERS

1

627481

LINK CHAIN

CA555, C6E, Attachment

1шт.

2

86978515

CHAIN (AG)

Gathering, Chrome Pin

2шт.

2

86979313

CHAIN (AG)

Gathering, Black Pin [Lower Cost]

2шт.

3

576658

WASHER,13.49mm ID x 36.51mm OD x 3.43mm Thk

2шт.

4

86837081

SPROCKET

7 Teeth

2шт.

5

86611537

PLATE

RH

1шт.

5

86611536

PLATE

LH, See Fig 20.07.04 For Hydraulic Plates

1шт.

6

86611426

GUIDE

LH & RH Manual

2шт.

7

87027837

WEAR PLATE

1шт.

8

87029139

BRACKET

Idler Weld Assembly

2шт.

9

87034967

SPROCKET

Idler

2шт.

10

86583948

SPRING

Compression

2шт.

11

86583945

TUBE,38.10 mm OD x 133.40 mm L

2шт.

12

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

2шт.

13

675499

BOLT,Hex, 5/8" - 11 x 10", Gr 5

Cap, G5, 5/8"-11 x 10", Adjusting

2шт.

14

86611369

BRACKET

Idler

2шт.

15

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

16

280540

PLOW BOLT,#3, 5/8" - 11 x 2 3/4", Gr 5

2шт.

17

19670

NUT,5/8"-11, GB

2шт.

18

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

19

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

2шт.

23

86583944

BRACKET

Assembly

4шт.

24

86625832

FRAME

Row Unit

1шт.

25

Clutch, Radial Pin, See Fig 20.13.05B

1шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

27

86729260

ANGLE

Stripper, View A, Qty 24 [12R30"], Qty 2 [8R22", 12R20" & 22"], Qty 16 [8R30", 36", 38" & 70CM], Qty 12 [6R]

1шт.

27

86729321

STRIPPER

Stripper, View B, 12 Row-20"

11шт.

27

86729322

STRIPPER

Stripper, View B, Qty 11 [12R22"], Qty 5 [8R22"]

1шт.

27

86729262

PLATE

Stripper, View B, 8 Row 22"

2шт.

28

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

29

88902

NUT,3/8"-16

2шт.

30

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

33

280431

NUT,1/2"-13, G5

2шт.

34

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

35

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

10шт.

36

29046

WASHER,11.1mm ID x 25.4mm OD x 0.457mm Thk

2ARшт.

37

86611788

ROLLER,114.3mm OD x 403.2mm L

Feed, Flute Rolls

2шт.

37

Feed, Knife Rolls, See Fig 20.13.05C

1шт.

38

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

2 ARшт.

39

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

2 ARшт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

41

87034132

KNIFE ASSY

8.8" Long [Eventual supersession to 16.4" Long knife]

2шт.

BPIN CBJ032001

1шт.

41

86611418

KNIFE

16.4" Knife

2шт.

CBJ032001 and after

1шт.

42

86611414

KNIFE

Assy, LH Front

1шт.

43

86611411

KNIFE,211.5mm L x 139mm W x 6.3mm Thk

Assy, RH Front

1шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

45

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

46

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

8 Row-30", 12 Row-20"

1шт.

47

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

3шт.

48

Gear Box Assy, Row Unit, See Fig 20.13.05A

1шт.

49

86611408

SHIELD

2шт.

50

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

51

100016

NUT,M10 x 1.5, Cl 8

1шт.

52

86642643

BOLT

Cap, HH, G8, 1/2"-13 x 8-1/2"

2шт.

53

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

54

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

55

87021346

SPIRAL

Knife Roll Point, RH Location, LH Spiral Thread, Option

1шт.

55

86611527

ROLLER

Fluted Roll Stalk, RH Location, LH Spiral Thread

1шт.

56

86611529

ROLLER

Fluted Roll Point, LH Location, RH Spiral Thread, Option

1шт.

56

87021344

SPIRAL

Knife Roll, Stalk, LH Location, RH Spiral Thread

1шт.

57

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

1-1/4"OD, 1"ID, 0.015"Thick

2 ARшт.

58

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

24шт.

59

86979612

ROW UNIT

Hydraulic, 20.13.05C Feed Rollers

1шт.

60

86979613

ROW UNIT

Hydraulic, Ref 37 Flute

1шт.

61

86979614

ROW UNIT

Manual, 20.13.05C Feed Rollers

1шт.

62

86979615

ROW UNIT

Manual, Ref 37 Flute

1шт.
