Запчасти Case IH 2412-30 (20.13.03[3]) - KIT, OUTER HOOD (58) - ATTACHMENTS/HEADERS

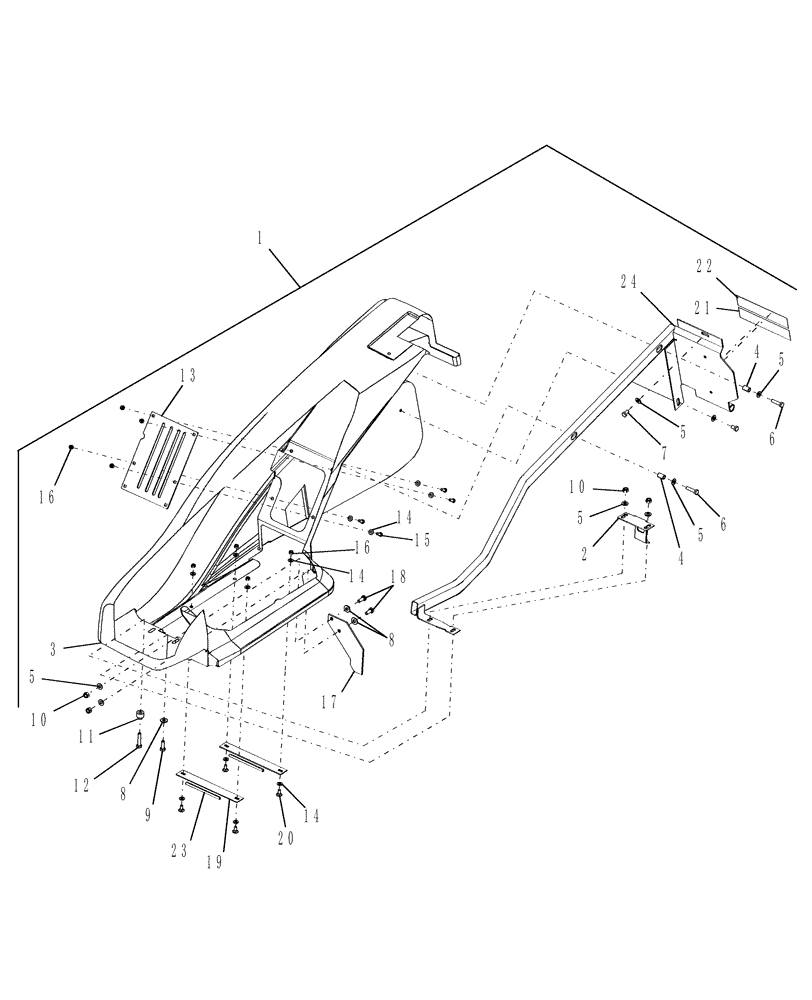

Схема запчастей Case IH 2412-30 - (20.13.03[3]) - KIT, OUTER HOOD (58) - ATTACHMENTS/HEADERS
19
5
6
2
22
1
7
21
5
4
23
10
3
15
16
24
5
9
20
5
18
14
12
10
5
6
8
11
14
8
13
14
16
17
4

Артикул

Название

Примечание

Количество

1

86978714

HOOD

LH Outer

1шт.

1

86978715

HOOD

RH Outer

1шт.

2

86544357

CATCH

1шт.

3

86635994

HOOD

RH, Logo Included and is NSS

1шт.

BPIN CBJ032001

1шт.

3

87571756

HOOD

RH, Logo Included and is NSS

1шт.

CBJ032001 and after

1шт.

3

86635993

HOOD

LH, Logo Included and is NSS

1шт.

BPIN CBJ032001

1шт.

3

87571755

HOOD

LH, Logo Included and is NSS

1шт.

CBJ032001 and after

1шт.

4

37836

SPACER,1" - 8 x 8"

Split

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

7

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

11

86530602

PIN

1шт.

12

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

13

87024877

PLATE

Hood Transport

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

17

86526475

FLAP

1шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

19

86583889

SUPPORT

2шт.

20

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

21

86547783

REFLECTOR,Tape, Red Orange

Red/Orange Fluorescent

1шт.

22

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

23

NH291525

EDGE

1шт.

24

86642048

TUBE,1531 mm L

LH Hood

1шт.

24

86642051

TUBE,1531.10, 89.10 mm L

RH Hood

1шт.

Выбрано товаров: 33
