Запчасти Case IH 2412-30 (20.13.03[2]) - KIT, OUTER DIVIDERS, FRONT (58) - ATTACHMENTS/HEADERS

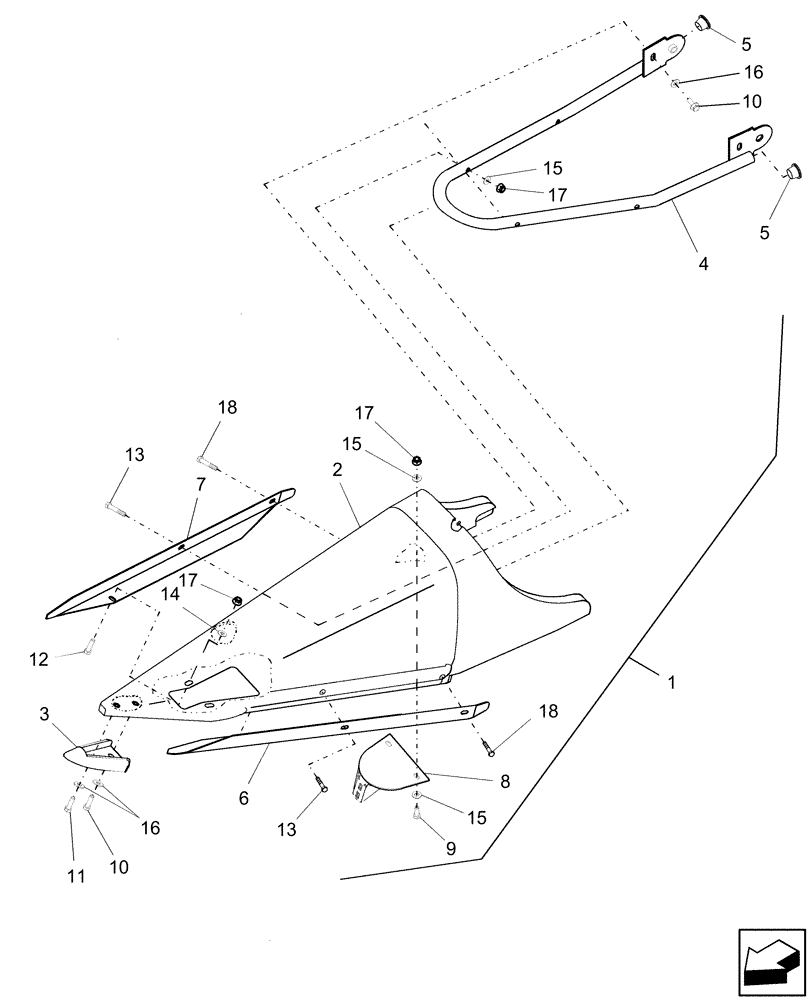

Схема запчастей Case IH 2412-30 - (20.13.03[2]) - KIT, OUTER DIVIDERS, FRONT (58) - ATTACHMENTS/HEADERS
12
9
4
10
3
16
8
2
13
6
13
15
15
17
5
5
11
14
17
7
18
18
15
10
17
16
1

Артикул

Название

Примечание

Количество

1

86978718

DIVIDER ASSY.

Includes Ref, Serial Range: 2-17

1шт.

2

86980203

POINT

Divider

1шт.

3

87015178

POINT

Divider, End

1шт.

4

86729268

TUBE,756.30, 341.80 mm L

1шт.

5

86583879

PLUG

2шт.

6

86555871

WEAR STRIP

RH

1шт.

7

86555870

WEAR STRIP

LH

1шт.

8

87020038

PLATE

Reinforced, AHHC/FT

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

11

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

12

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

13

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

4шт.

14

495-21038

WASHER,5/16"

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

18

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

2шт.

Выбрано товаров: 18
